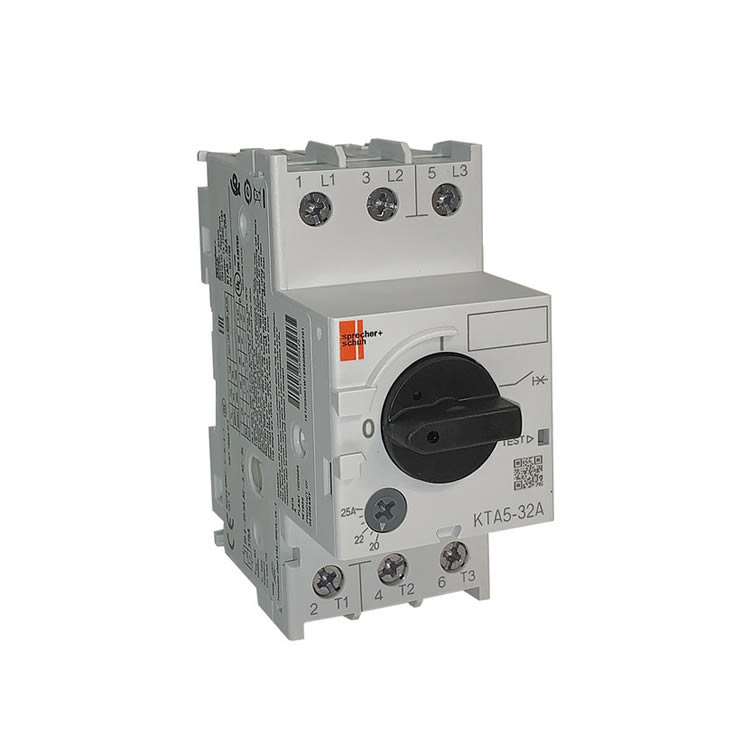

Sprecher+Schuh KTA5-32A-6.3A Starter
1. Product Overview
Model: KTA5-32A-6.3A
Type: Motor integrated protection starter
Brand: Sprecher+Schuh (German professional industrial electrical brand)
Application: Integrated solution for starting, protection and isolation of three-phase asynchronous motors
2. Core functions
Starting control: Direct online starting (DOL)
Comprehensive protection:
Short circuit protection (32A breaking capacity)
Overload protection (6.3A adjustable setting)
Phase loss protection
Stalling protection
3. Technical parameters
Item Specification
Rated current 32A
Protection setting range 6.3-32A (continuously adjustable)
Number of poles 3P
Control voltage Passive mechanical
Mechanical life >100,000 times
Installation method DIN rail (35mm)
