Spin-on filters to be mounted on the return line of the circuit for working pressure up to 35 bar.
Maximum flow: 52.8 gpm (200 l/min)
Maximum working pressure: 508 psi (35 bar)
Filter media:
Microfiber 3, 6, 10, 25 micron
Reinforced cellulose 10, 25 micron

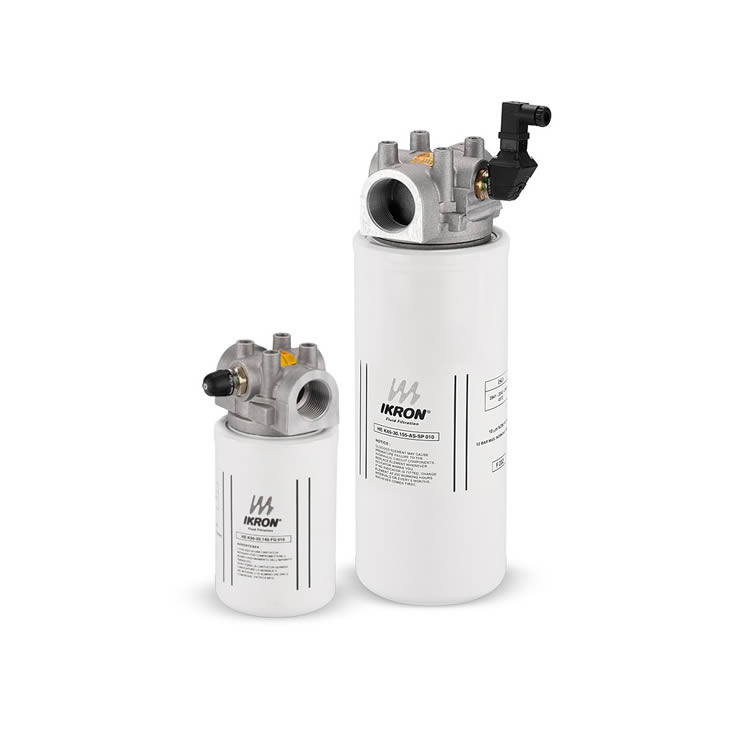

Ikron HF650 spin-on filters are mounted on the return line of the circuit and protect the system components from contaminant particles.
They are particularly recommended for hydrostatic charge pumps and cooling circuits.
HF650 series Filter type:
HF650-20.100, HF650-20.150, HF650-20.180, HF650-20.230, HF650-30.295
