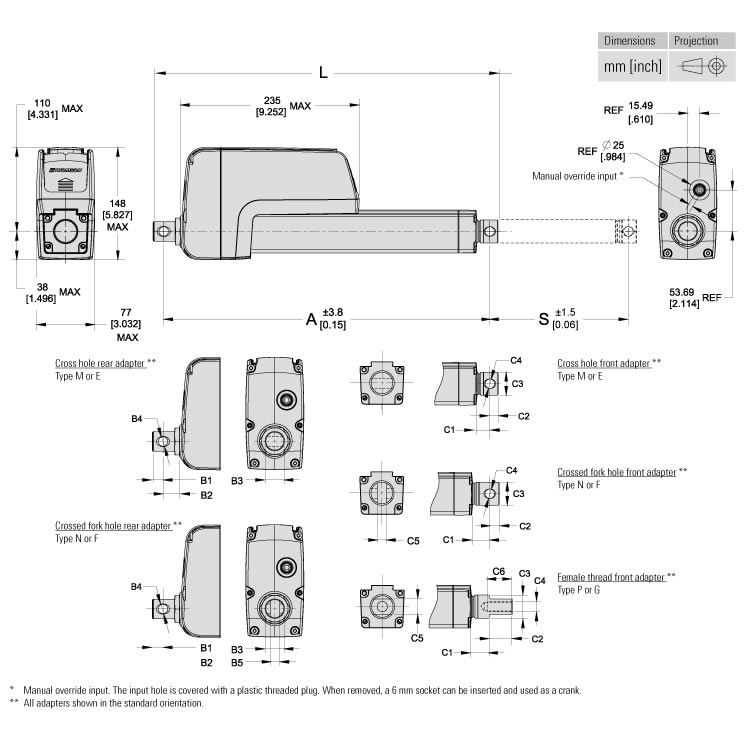

Actuator, Electrak HD, 24 Vdc, 4500 N, 100 mm, end-of-stroke indication output + analog (potentiometer) position output + EXX, Cable length 300 mm, Flying Leads, Adapter at 0° (Standard), 19 mm/s Travel Rate @ Full Load
Electrak® HD – Superior Performance Linear Actuator Higher Power, Longer Stroke, On-board Controls. Available with optional J1939 CAN/ CAN open bus and Unmatched Environmental Protection
Unrivaled Environmental Protection. IP69K (static), IP67 (static) and IP66 (dynamic) ratings prove Electrak HD can withstand the harshest environments.
Salt spray tested for 200 hours.
RoHS and REACH (EU) certified. CE compliant.
Integrated manual override.
Standard anti-rotation actuation.
Integrated thermal overload protection.
25% Duty Cycle @ 25 degrees C
Thomson HD24B045-0100ELP1EES is a 24VDC heavy-duty Electrak HD electric linear actuator offering 4500N thrust and 100mm stroke, equipped with position feedback and robust sealing for harsh industrial automation scenarios.
