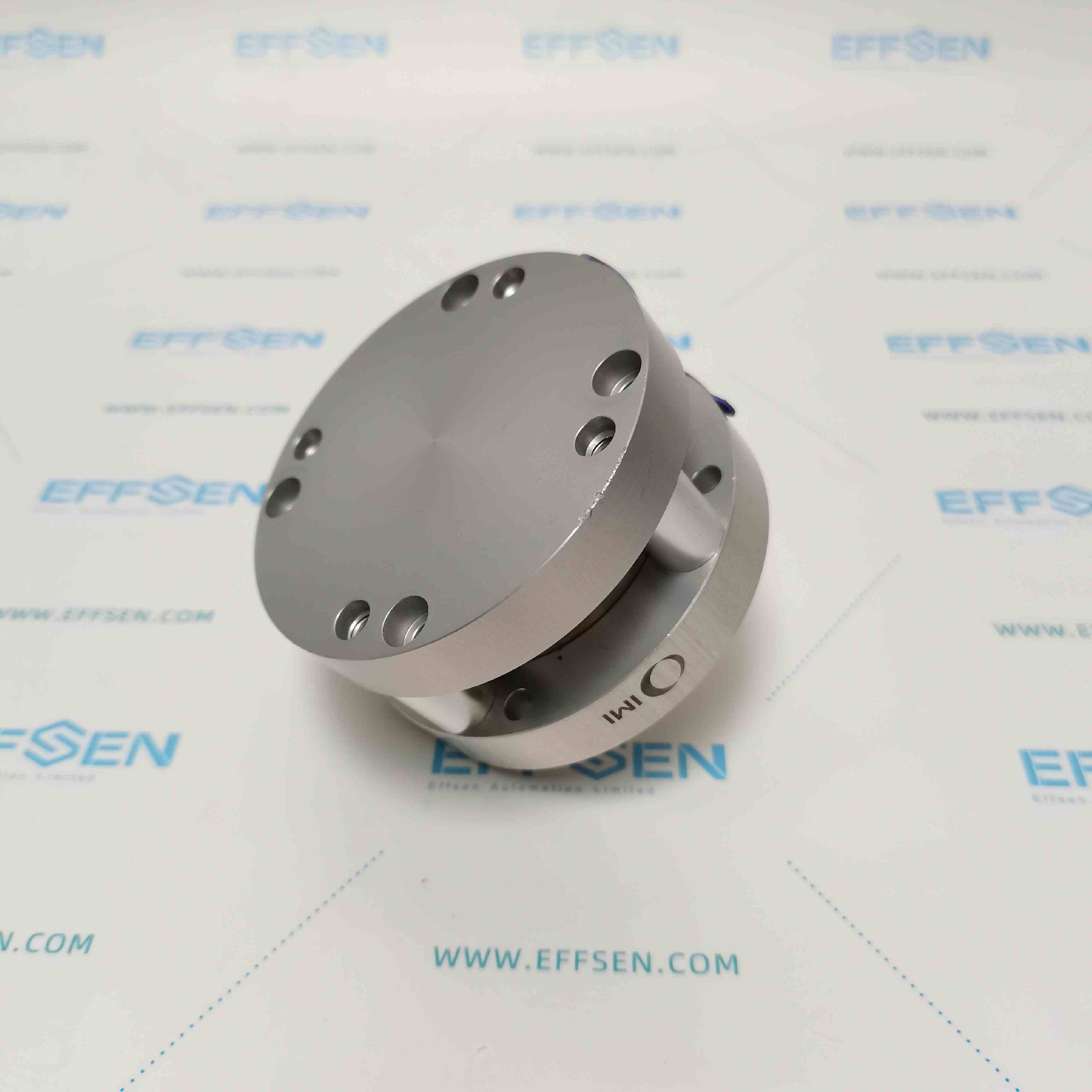

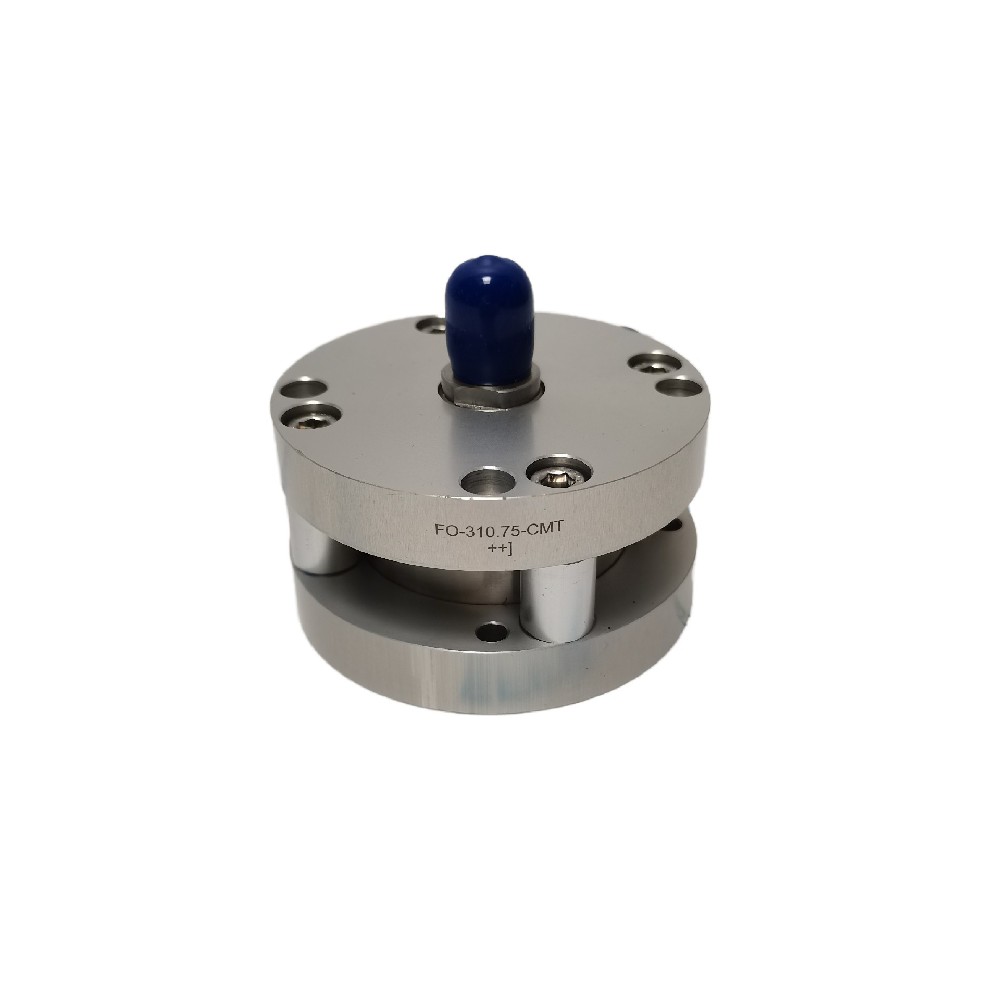

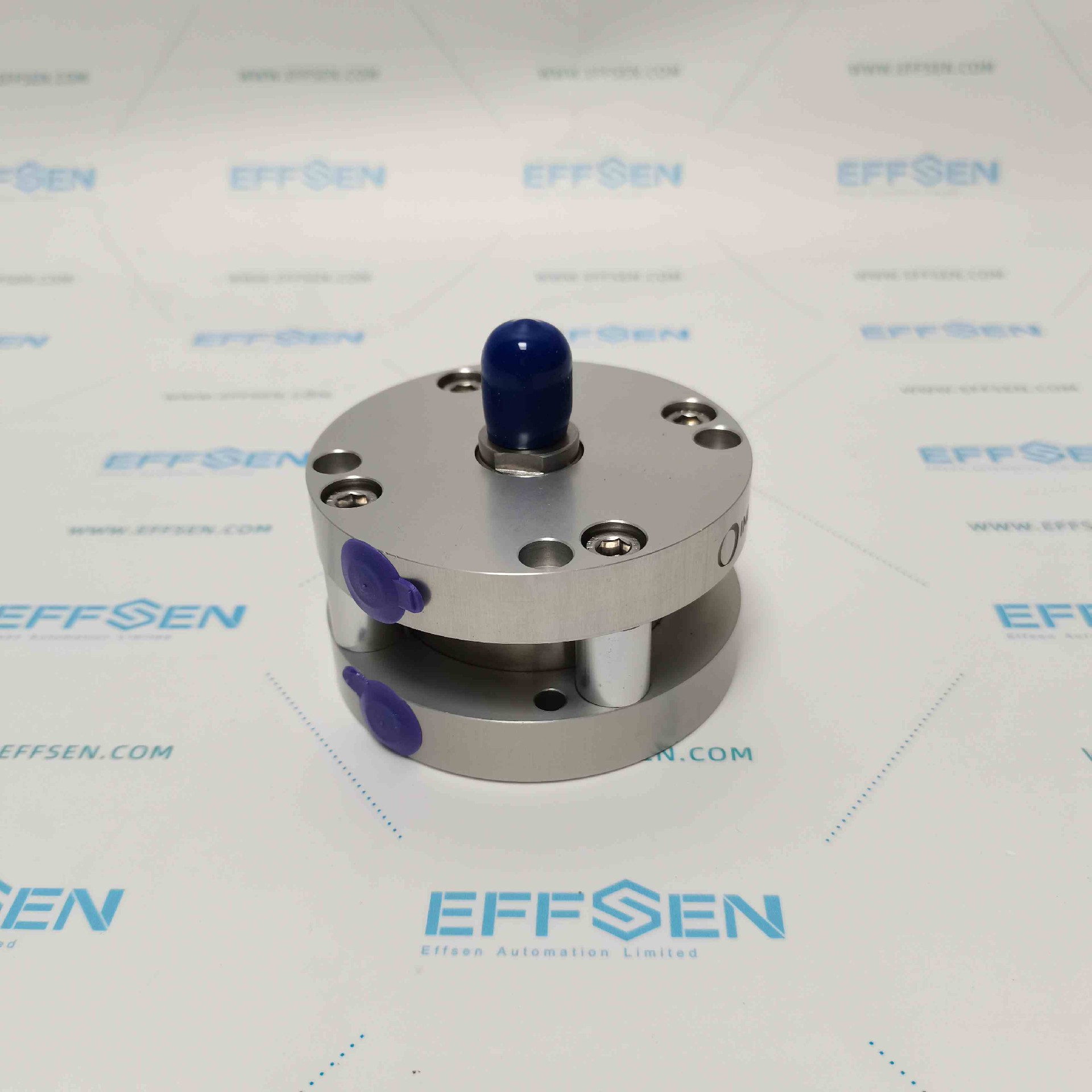

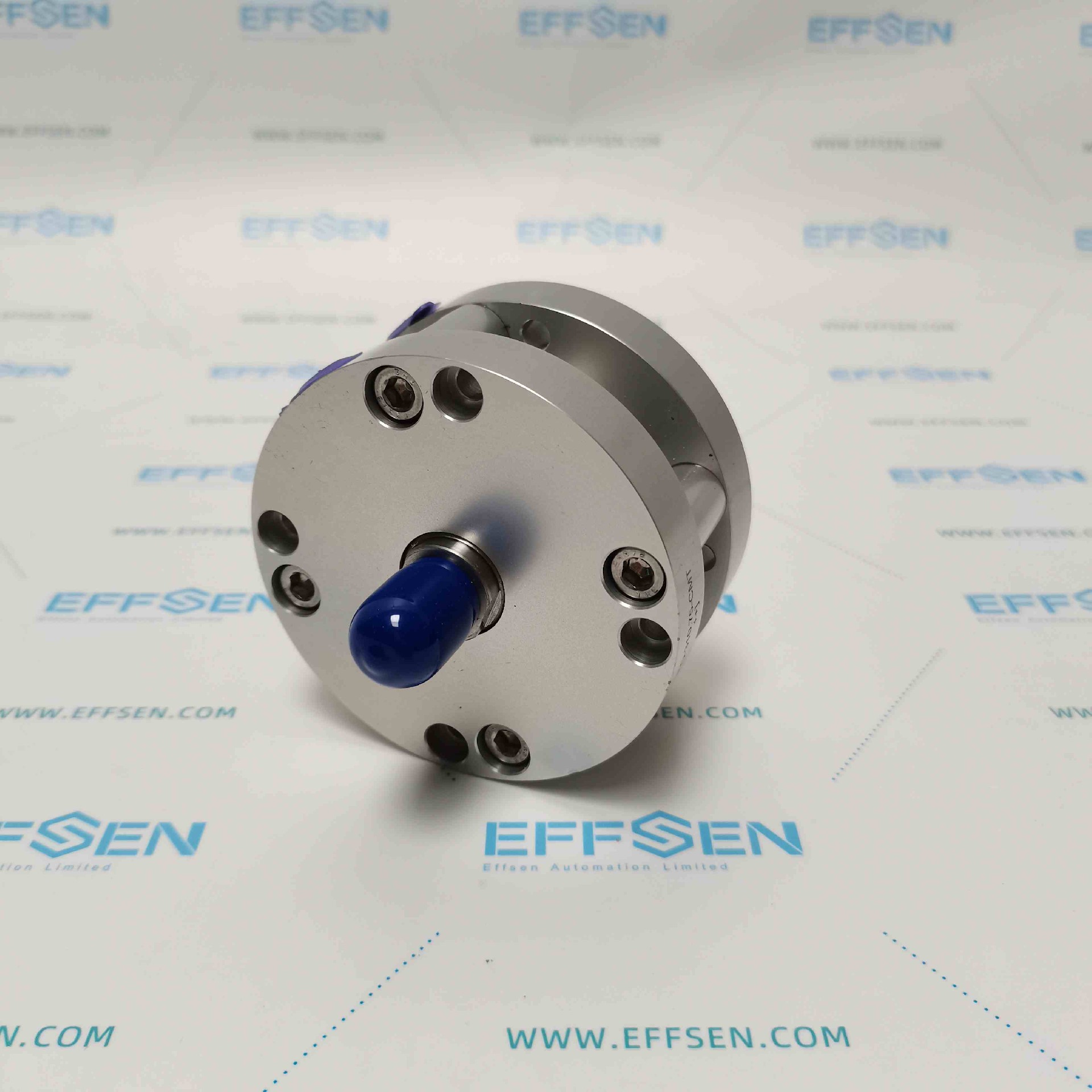

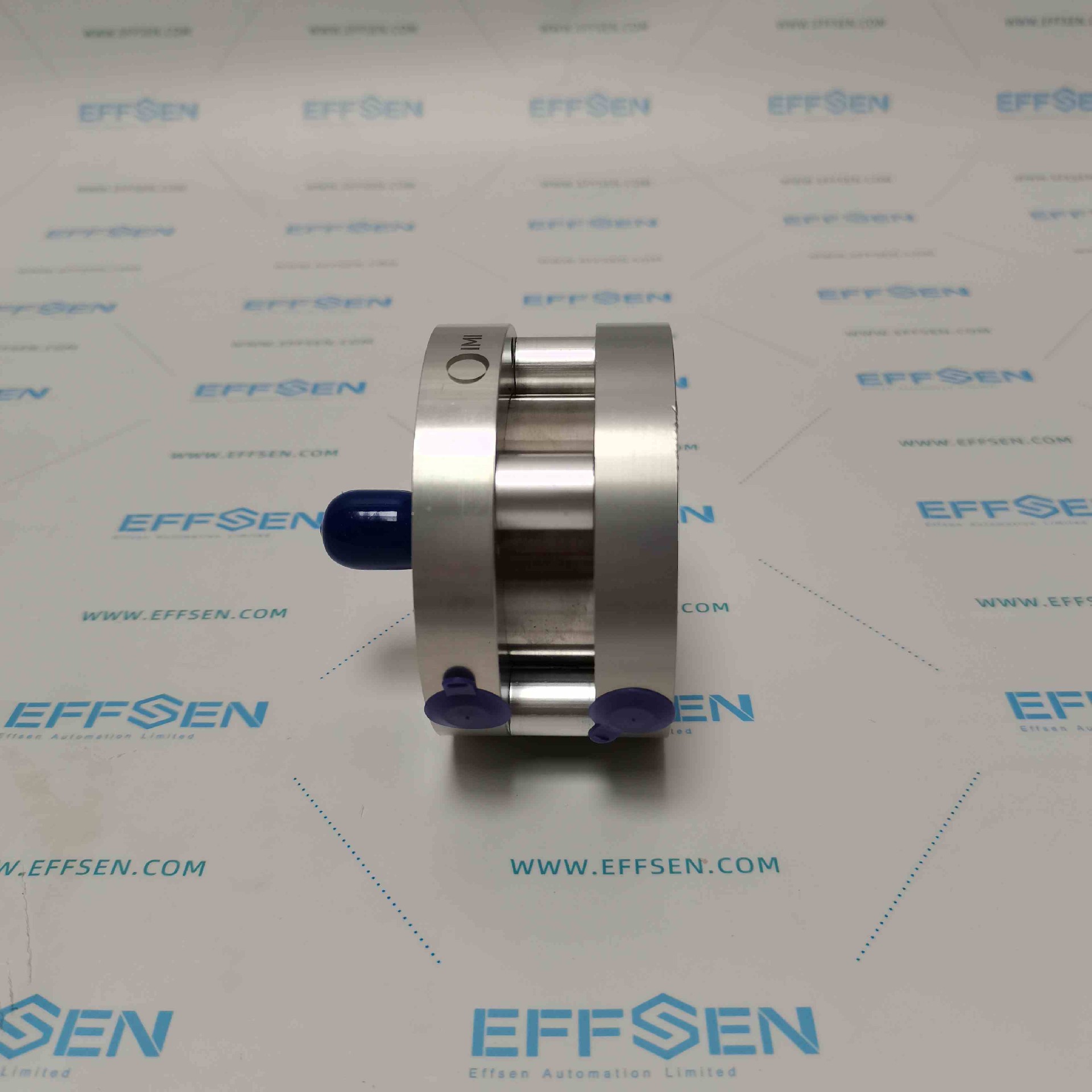

Bimba FO-310.75-CMT Compact Flat Cylinder (Flat-1 Series)
Brand: Bimba
Series: Flat-1 Round Compact Flat Cylinder, short stroke, low profile
Model Number Breakdown
FO: Flat-1 Series, double acting, single rod end, flat cylinder
31: 2-1/2" bore (63.5mm)
0.75: 0.75" stroke (19.05mm)
C: Bumpers at both ends to absorb piston impact
M: Magnetic piston, compatible with magnetic switches for position sensing
T: Male rod end (external thread)
Specifications
| Item | Specification |
|---|---|
| Model | FO-310.75-CMT |
| Brand | Bimba |
| Series | Flat-1 Round Compact Flat Cylinder |
| Action Type | Double acting, single rod end |
| Bore Size | 2-1/2" (63.5mm) |
| Stroke | 0.75" (19.05mm) |
| Rod End | Male thread (T) |
| Internal Configuration | Bumpers (C) + magnetic piston (M) |
| Cylinder Barrel | 304 stainless steel, mirror finish |
| End Caps | Anodized aluminum |
| Piston Rod | 303 stainless steel, precision ground and polished |
| Standard Seals | Buna-N |
| Max Operating Pressure | 10.34 bar (150 PSI) |
| Operating Temperature | -25°C to +65°C |
| Mounting | Flange counterbore mounting, front or bottom fixing |
