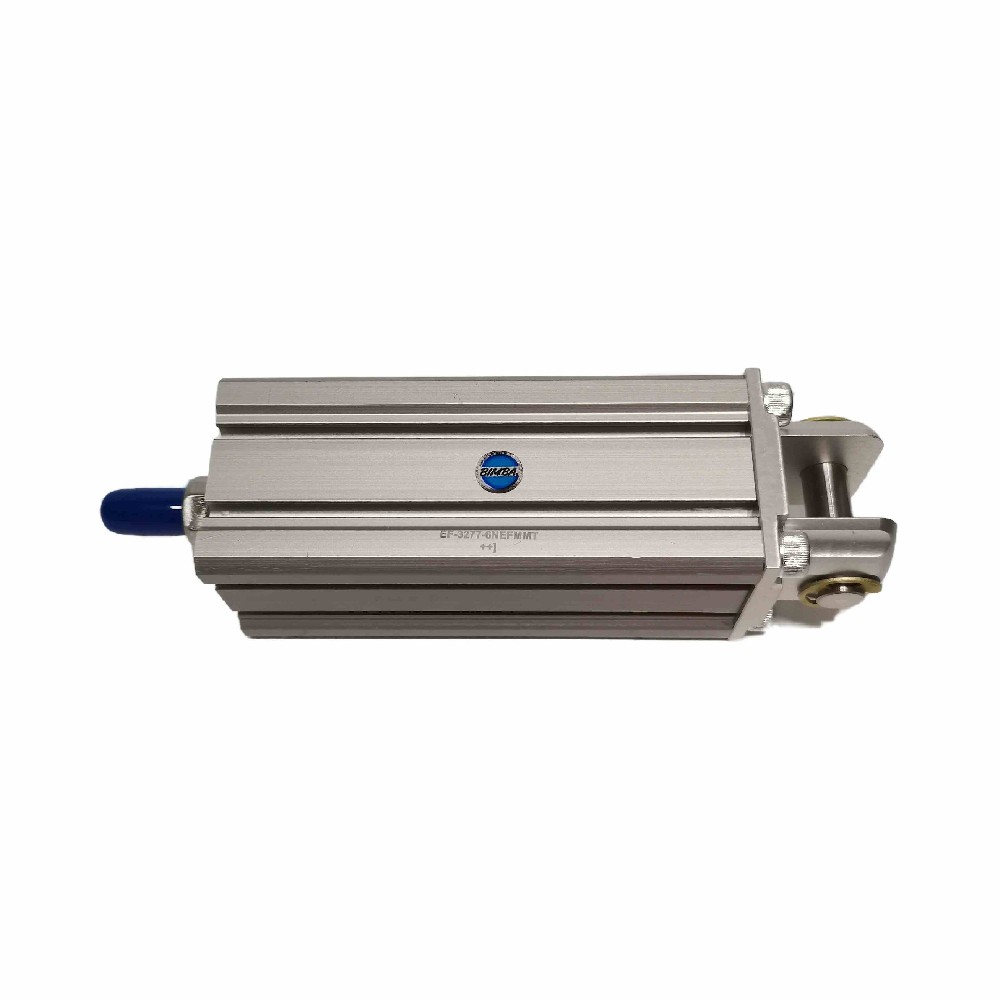

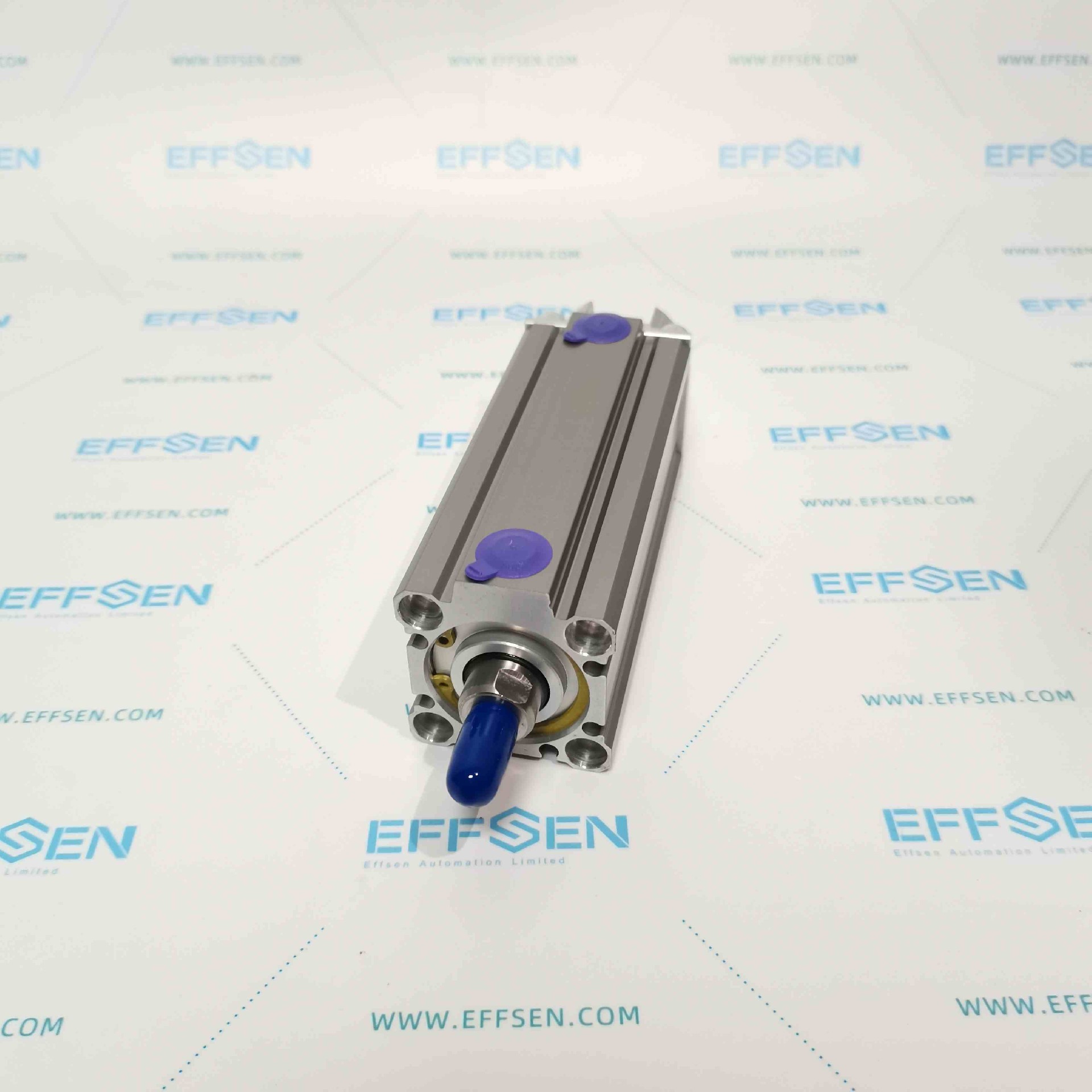

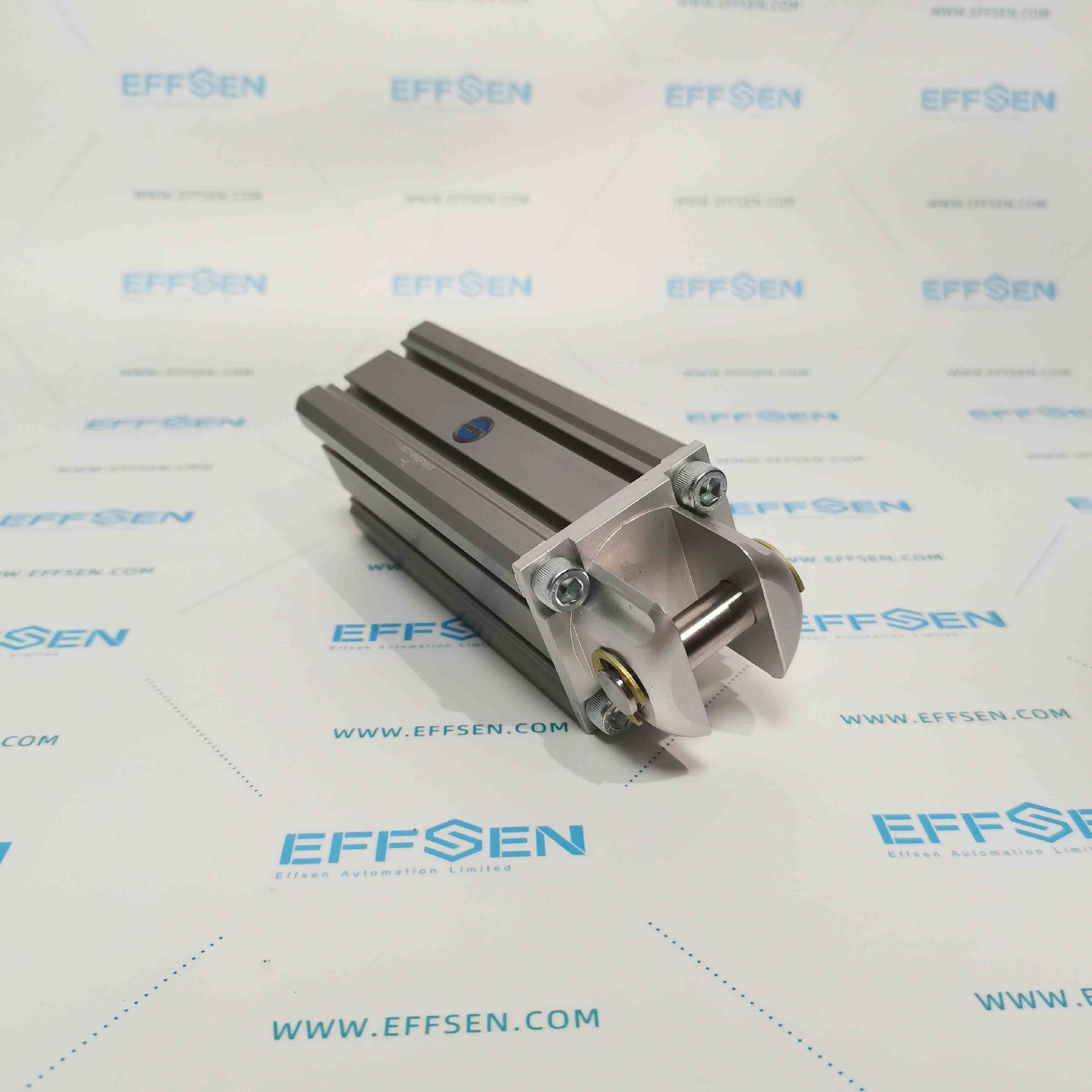

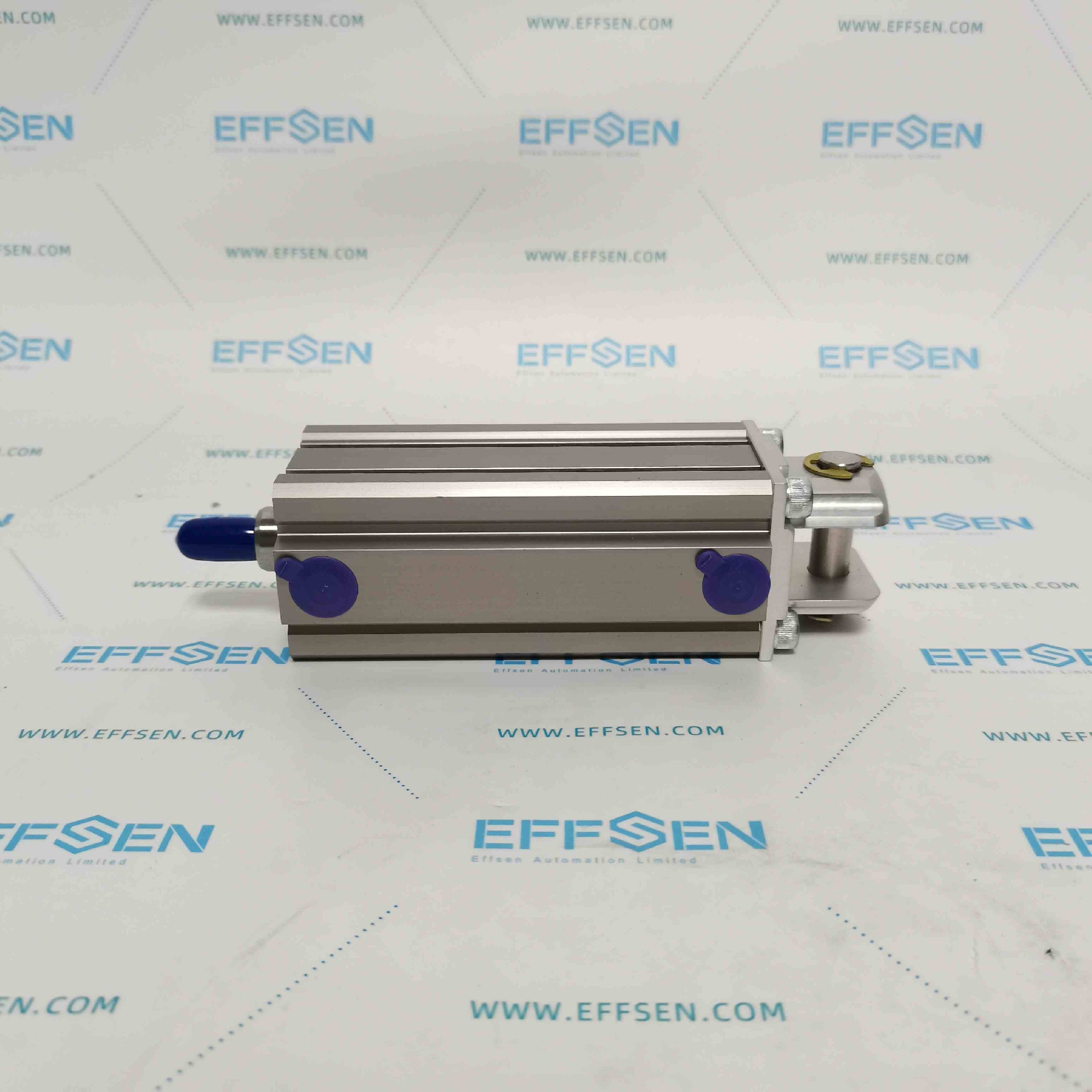

Bimba EF-3277-6NEFMMT Compact Flat Cylinder
Brand: Bimba (IMI Precision Engineering, USA)
Series: EF-I Metric Aluminum Extruded Body Compact Cylinder (distinct from the FO round Flat-1 cylinder)
Model Number Breakdown
EF: EF-I Series, double acting, single rod end, square compact cylinder
32: 32mm bore
77: 77mm stroke
6N: Front flange mount
E: U.S. customary (inch) threaded ports and rod threads
F: Bumpers at both ends to absorb piston impact
M: Magnetic piston, supports magnetic position sensing
MT: Male rod end (external thread)
Specifications
| Item | Specification |
|---|---|
| Model | EF-3277-6NEFMMT |
| Brand | Bimba |
| Series | EF-I Square Compact Cylinder |
| Action Type | Double acting, single rod end |
| Bore Size | 32mm |
| Stroke | 77mm |
| Mounting | Front flange mount (6N) |
| Rod End | Male thread (MT) |
| Internal Configuration | Bumpers (F) + magnetic piston (M), compatible with magnetic switches |
| Body Material | PTFE-impregnated, hard anodized aluminum extrusion |
| Piston Rod | 303 stainless steel, precision ground and chrome plated |
| Standard Seals | Buna-N |
| Max Operating Pressure | 10 bar (140 PSI) |
| Operating Temperature | -10°C to +70°C |
| Ports | Inch threads (Option E) |
| Switch Groove | Integrated magnetic switch mounting groove for direct position sensor installation |
Product Features
Square extruded aluminum body with a low-profile, compact design that saves installation space; metric dimensions, suitable for European imported equipment.
Double acting push-pull operation with built-in bumpers at both ends, reducing reciprocating impact and vibration, lowering noise, and extending cylinder service life.
Magnetic piston with an integrated groove in the cylinder body allows for easy installation of magnetic switches, providing end-of-stroke position feedback for rod extension and retraction.
Front flange mounting with a male threaded rod end enables direct fixture and tooling attachment for convenient assembly.
PTFE-impregnated, hard anodized aluminum body offers superior wear and scratch resistance. Factory pre-lubricated, repairable, and low maintenance cost.
