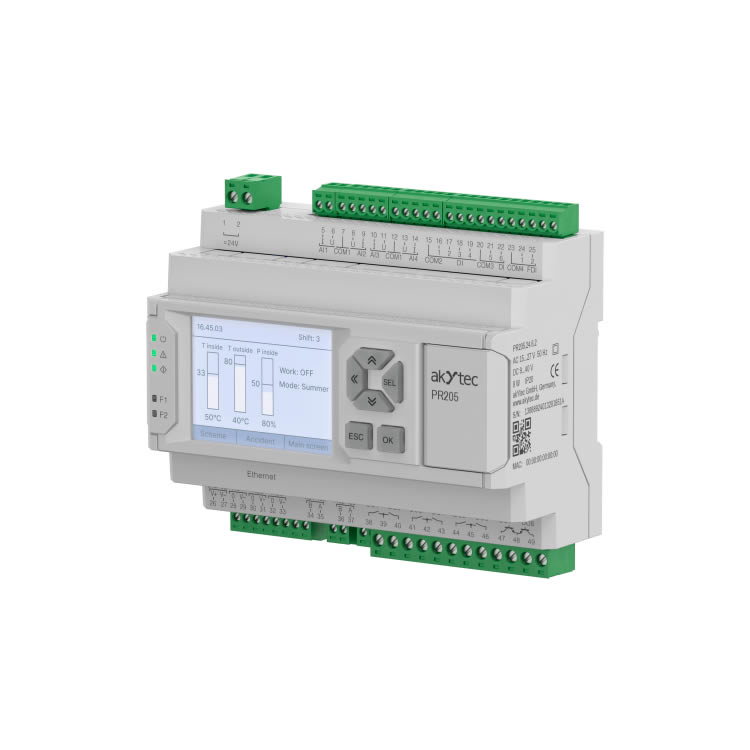

PR205 is a new programmable relay with graphic display and Ethernet. The device combines an optimal configuration of analog and discrete inputs/outputs for controlling ventilation, heating, air-conditioning systems, etc. The number of inputs/outputs can be increased by using the expansion modules PRM.
Graphical color screen allows to create convenient and clear user interfaces, which greatly simplifies the configuration and perception of information.
Ethernet interface allows to integrate the device into distributed systems, to increase the number of inputs/outputs with the help of Mx210 I/O modules, to realize remote control and management of equipment with the help of akYtec cloud service. The PR205 includes modifications with 2 RS-485 interfaces on board for data transmission to the upper level and control of other elements of the system.
The PR205 algorithm is built by the user in the free ALP programming environment. This allows to create unique user algorithms and take into account all peculiarities of the system.
Features and benefits
HMI: graphic screen and buttons
Graphical color screen, 2.4" diagonal, 320×240.
6 mechanical buttons with user customizable.
5 LEDs: 3 service, 2 user.
Optimal combination of inputs/outputs
4 analog inputs: PT1000, NTC/PTC, 4...20 mA/ 0...10 V, discrete mode.
3 universal analog outputs: 4...20 mA/0...10 V.
6 digital inputs (power supply =24 V).
2 fast digital inputs up to 100 kHz.
8 digital outputs (E/M relays and transistor keys).
Communication capabilities
Ethernet interface, Master/Slave mode, Modbus TCP:
Direct access to akYtec cloud service.
Connection to PC for program configuration and recording.
Configuration in akYtec ToolPro.
Process visualization with operator panels and SCADA.
Increase of I/O with Mx210 modules.
Up to 2 RS-485 interfaces, Master/Slave mode, Modbus RTU/ASCII:
Integration into SCADA systems.
Process visualization with operator panels.
Increase of inputs/outputs by means of Mx110 modules.
Control of external devices: VFDs, sensors, etc.
Connection to PC for configuration and program recording.
Design features
Compact modular housing with the width of 7 modules.
Removable terminal blocks for easy installation.
Quick battery replacement.
Operation
2 power supply modifications: ~/=24.
Increase of input/output channels by means of PRM modules.
Operation in unheated premises: -20...+55 ºС.
Configuration and program recording via USB, Ethernet.
