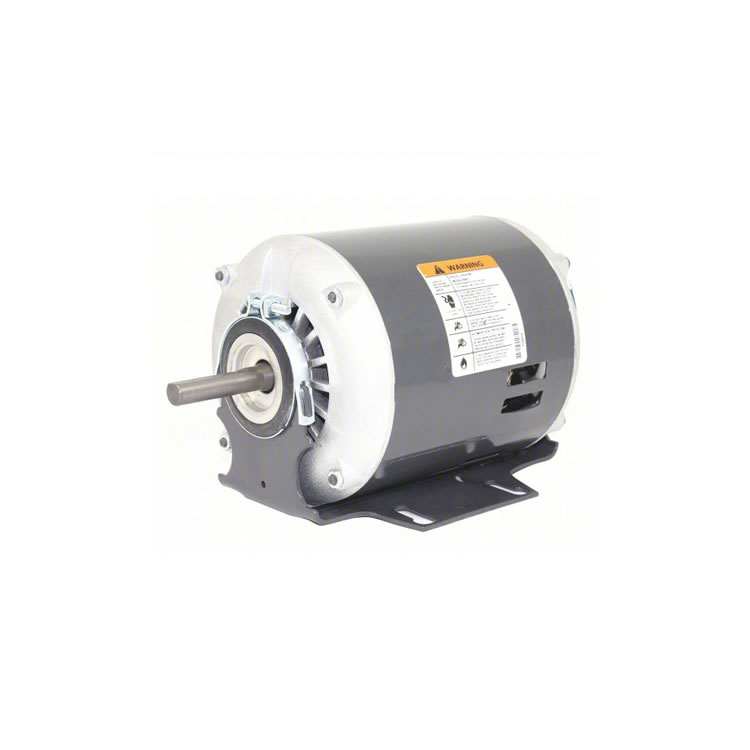

The Dayton 6K718BE is a 1/4HP single-phase universal motor, designed for general-purpose industrial drive applications. Powered by 115V/60Hz, it delivers a rated current of 5.3A, a speed of 1725RPM, and supports continuous duty (CONT) operation with a service factor of 1.35, ensuring stable performance under fluctuating loads.
Featuring a 48Z frame, Class B insulation, and a maximum ambient temperature of 40℃, the motor adopts an ODP (Open Drip Proof) design for excellent heat dissipation and easy maintenance.
It is equipped with an automatic thermal protector to prevent overheating, and its rotation direction can be reversed by swapping red and black leads for flexible installation. Manufactured in Mexico and certified by SA and UL, this reliable motor is widely used in small fans, pumps, conveyors and other general machinery, serving as a premium industrial drive solution.
