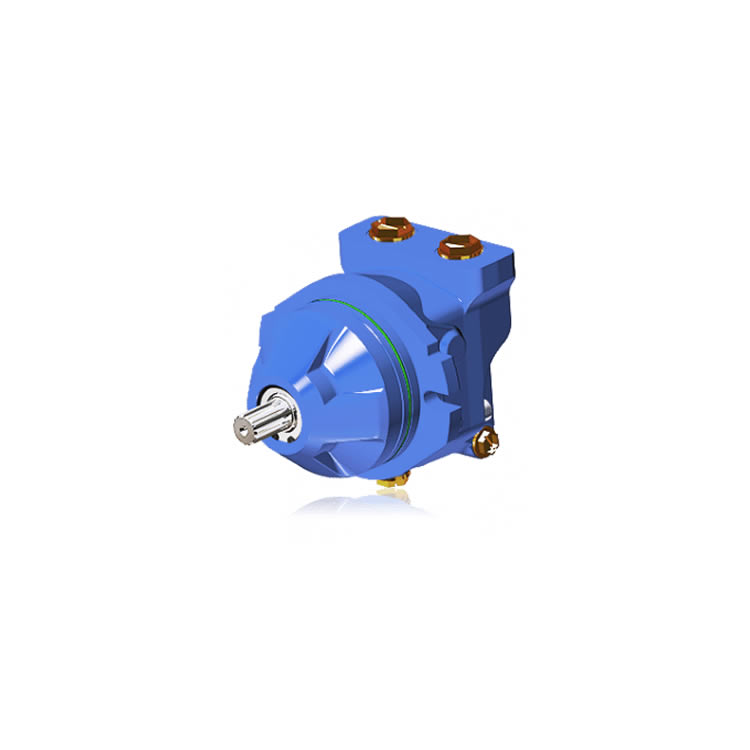

Hydro leduc MSI2C45 2-displacement motors
Two displacement motors, of 49 cc/rev maximum
9 piston design, in line
Displacement adjustment by hydraulic control
Suitable for use in open or closed loop circuits
Dual direction of rotation
High starting torque
Low noise level
Long service life
Displacement ratio up to 3
Available as options : speed sensor and flushing valve
Characteristics and advantages :
high efficiency,
2-displacement motors, max. displacement 49 cc/rev.
on request, the minimum and maximum displacement can be factory adjusted,
pilot pressure on the X line to change the displacement : from 17 to 70 bar,
maximum pressure of 5 bar in the housing (whatever the shaft speed),
extreme operating temperature : -25 to 115°C,
can be used in either closed or open loop systems,
semi-integrated – cartridge motor,
bidirectional,
options available on request : flushing valve, speed sensor. Please consult.
Applications :
construction equipment,
agricultural machinery,
skid-steer,
fan drive.
