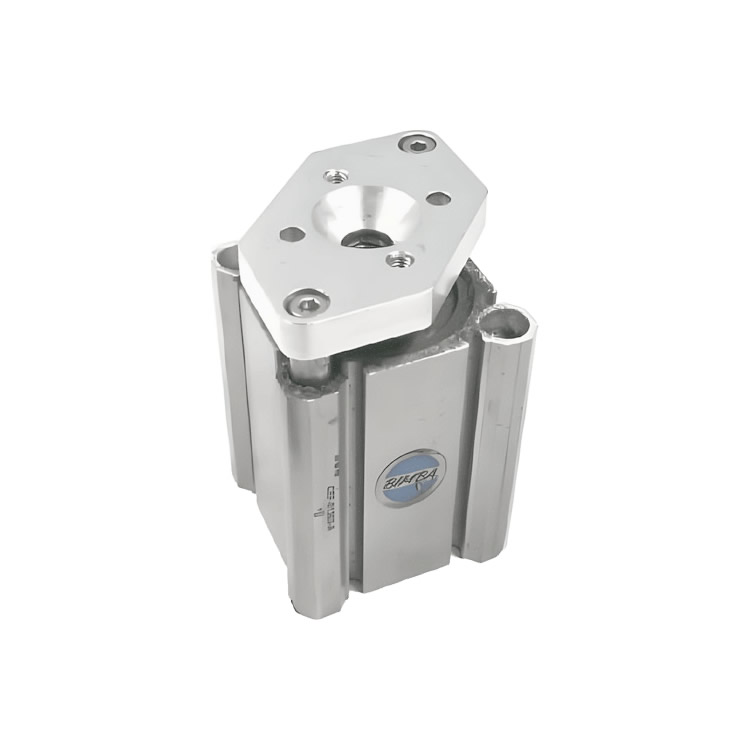

The CEF-01439-A double-acting non-rotating pneumatic cylinder from Bimba in the United States is a highly advantageous product in the field of pneumatics.
Double-Acting Power Mechanism
It achieves controlled bidirectional pushing and pulling motion through dual-pressure air actuation, enhancing work efficiency compared to single-acting cylinders while ensuring consistent power stability at the end of stroke.
High-Precision Motion Control
Incorporating a patented anti-rotation structure (e.g., square piston rod design), it restricts motion deflection to within ±2.5°, eliminating positioning errors caused by circumferential displacement of the piston rod. This makes it ideal for precision assembly, material clamping, and other applications demanding strict linear trajectory control.
Core Performance Parameters
Bore diameter: 1-1/2 inches (~38 mm), delivering high thrust output
Stroke: 1 inch (~25.4 mm), meeting precise displacement requirements in compact spaces
Pressure rating: Up to 200 PSI (~1.38 MPa), compatible with industrial-standard air supply systems
Long-Term Reliable Construction
Cylinder body: Made of 304 stainless steel for corrosion resistance in harsh industrial environments
Piston rod: Hardened stainless steel treatment paired with oil-impregnated bronze bushings to reduce friction and wear
Precision anodized aluminum end caps enhance sealing performance and structural integrity, extending equipment lifespan
Industrial Adaptability
Manufactured under an ISO 9001:2015-certified quality system to ensure consistent production standards, it is compatible with complex operating conditions in automated production lines, medical devices, packaging machinery, and more. Customizable configurations are also available to meet specialized application requirements.
