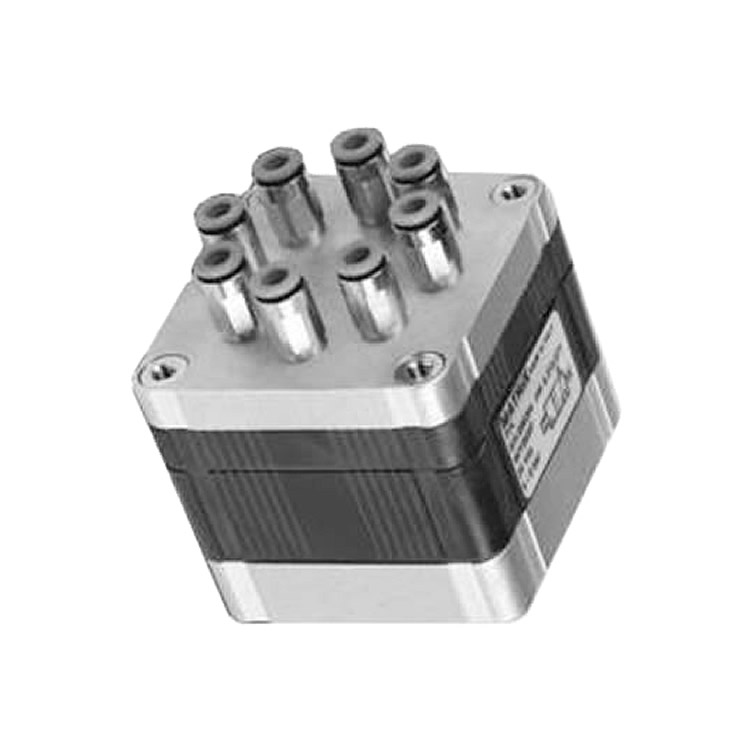

Industrial Product Translation: Matrix High-Frequency Solenoid Valve MX 758.8X3RRKK.G29
Product Description
The 750 series pneumatic solenoid incorporates 2/2, 3/2, 3/3, or 5/2-way valves in either NC (Normally Closed) or NO (Normally Open) configurations within a single unit. The series' modular design allows for handling one socket or 2, 4, or 8 independent sockets. All innovations provided by Matrix technology are present. The response time is in the millisecond range, with an operational lifespan exceeding 500 million cycles. The series includes vacuum versions specifically designed for vacuum technology applications. Conversely, solenoid valves equipped with accelerated control feature response times below 2ms during opening and closing, with a maximum operating frequency of 300 Hz. In addition to their high-speed characteristics, the 750 series solenoid valves offer a flow rate of 100 l/min (ANR) at a supply pressure ranging from 0 to 8 bar. For the 750 series, numerous accessories are available, such as IP52 or IP65 connectors, manifolds in different positions, and accelerated drive boards.
Product Specifications
Fluid: Non-lubricated dry air (-10°C to +50°C)
Filtration Rate: Minimum 40 microns
Temperature: -10°C to +50°C (standard voltage)
Opening Response Time:
12/24: <7ms
JJ: <5ms
XX/KK: <2ms
Closing Response Time:
12/24: <3ms
JJ: <2ms
XX/KK: <2ms
The standard solenoid valve controlled by 24VDC has an opening response time of less than 5ms and a closing time of less than 2ms, enabling a maximum operating frequency of 200Hz.
Solenoid valves with high-speed control have response times of less than 2ms for both opening and closing, with a maximum operating frequency of 300Hz.
High-Speed Characteristics: Flow rate of 100 liters per minute (ANR), supply pressure: 0-8 bar
Weight: 350g
Expected Product Lifespan: ≥500 million cycles
Protection Class: IP52-IP62-IP65
Materials:
Valve body: PPS
Flange: AL aluminum (INOX optional)
Seal: NBR (HNBR available for gate seals if required)
Product Features
Compact size
High pipe diameter and flow rate
Short response time
Insensitive to frequency operation and vibration
Low absorption force
Precise, repeatable, and flexible
Long service life
