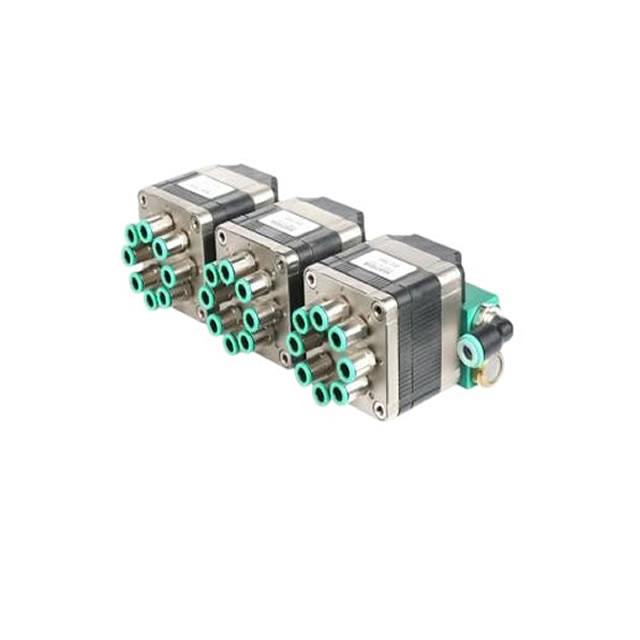

Matrix OX894.400C2KK Solenoid Valve
This new, robust series supersedes the old 850 series with far superior operating characteristics and life expectancy. Multiple outlets when manifold mounted lends this valve perfectly for manifold mounting for sorting machines. Matrix provides turnkey solutions for manifolds built to customer specifications. This drastically reduces manufacturing and testing time at the OEM – which in turn reduces costs.
Worldwide acceptance for its versatility, speed and life.
Minimum useful life of 500 million to 1 billion depending on operating parameters.
Available only in 2-position 2-way configurations.
Response times as low as 0.25 mS.
Specific models can operate at up 1200 HZ with speed-up control.
Compact [2” x 2” x 2”] with high total flow rate of 1620 LPM.
Single inlet with 1, 3 or 9 outlets.
Can be body ported or manifold mounted.
Insensitive to vibration.
Repeatable operation throughout useful life.
Low power consumption.
Ideally suited for ultra-high speed sorting machines.
Can be configured to customer requirements.
