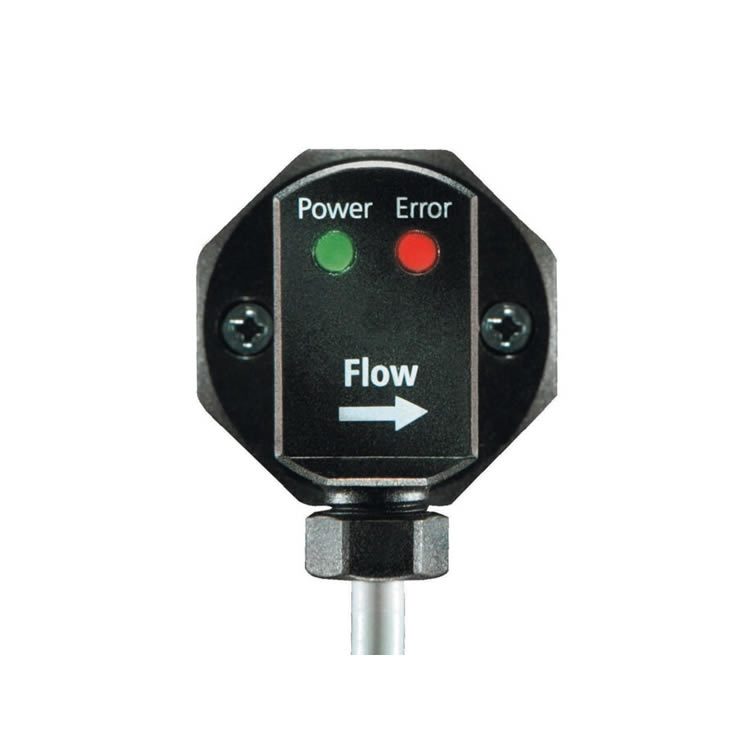

SCHMIDT Technology offers a price sensitive flow sensor under the designation SS 20.260, which is characterised by its compact and rugged design. With a measuring range up to 60 m/s and its linear output signal, it is an universal sensor for measuring flow velocity, volume flow or mass flow under atmospheric conditions. The sensor element is well protected against mechanical stress by the impact resistant chamber head. Via two LEDs, the sensor indicates whether the supply voltage is sufficient and if it works properly.
SCHMIDT® Flow Sensor SS 20.260 parameter:
Chamber head (fast response time)
Flow and temperature signal (optional)
Probe length 50 … 500 mm
Measuring ranges 0 … 10 m/s to 0 … 60 m/s
Temperature range +120 °C
Application:
Industrial processes
Flow measurement in air ducts
Control of the combustion air in oil, coal, wood or gas burners
Ventilation and air conditioning
Flow control in cooling and drying systems
