The determination of measuring lengths in the range of one up to several meters is preferably carried out by using well priced and easy-tomount transducers on the basis of the draw wire measuring principle.

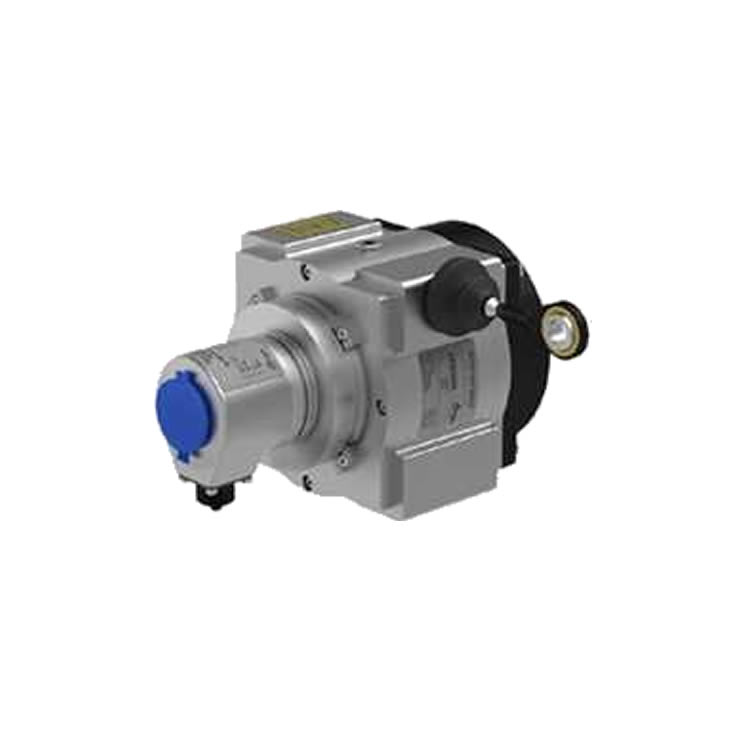

FSG - Rope Length Transmitter and Precision Signal Converter in Aluminium case.
Aluminium Housing is from the GS 80 Series
Measuring Range is maximum 2m to wire diameter 1.35mm
Bellow-type arrangement at wire outlet
Includes integral precision signal converter type PK1023-MU (5710Z02-275.015) for 4-20mA Output at maximmum 600 Ohms corresponding to 0/2m measuring range.
Requires a Power Supply at 18-33V DC
4-wire system with galvanic isolation
Plug-Connection (straight)
Manufacturers part number is SL3002-PK1023-MU/GS80/F-01
