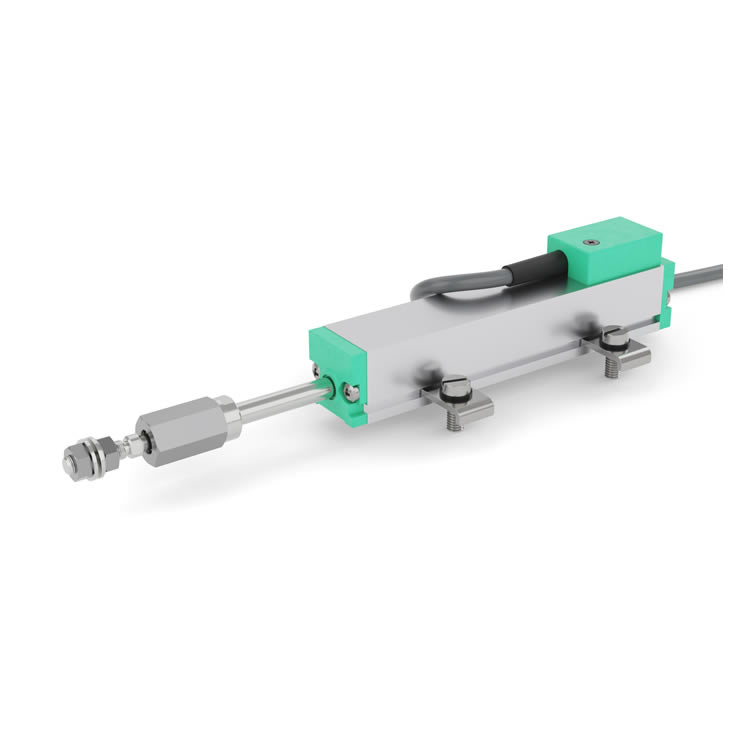

GEFRAN PA1-C-50-XL0113 Displacement Sensors
Description
25 to 150 mm stroke
Mechanical linkage using joint with take-up of play, M4 thread
Independent linearity up to ± 0.05%
Infinite resolution
No variation of electrical signal outside theoretical electrical stroke
Displacement speed up to 5 m/s
Working temperature: -30…+100°C
Electrical connections:
PA1 F 3 wire 1 m screened cable
PA1 C 5 pole connector 1 m (DIN 43322)
Life duration: > 100×106 operations (within C.E.U.)
Grade of protection IP40
