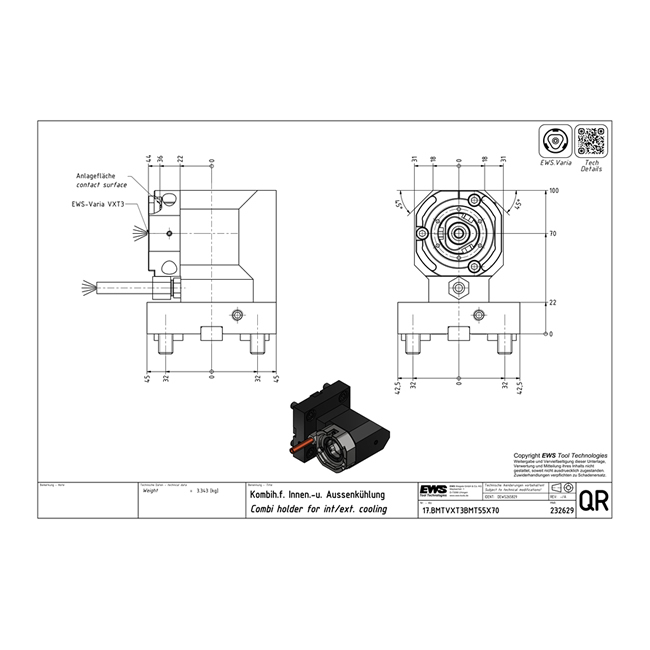

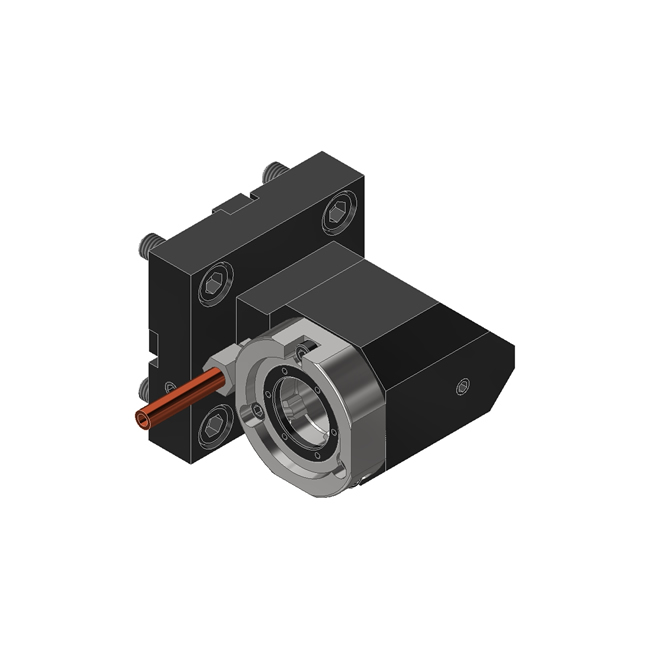

EWS Varia VXT3 17.BMTVXT3BMT55X70 Combi holder for int/ext. cooling
Combination holder for internal and external cooling
Premium class mold system for highest production efficiency - Made in Germany
EWS.Varia VX - Tool change in 20 seconds!
With the patented EWS.Varia VX quick-change system, you perform tool changes faster than your competitors.
Tool change in less than 20 seconds
One-hand operation
Mechanically loaded tool ejection
Transverse force-free clamping of inserts
Safe torque transmission
Large selection of adapters (collet, Weldon, milling arbor, hydraulic expansion, shrinking)
Tightening torque of 6 Nm must be observed!
Technical data
| Cantilever length (LPR) | 100.00 mm |
|---|---|
| Functional length (LF) | 70.00 mm |
| Functional width (WF) | 36.00 mm |
| Product group | Tool holders and adapter |
| Product type | EWS.Varia holder |
| Shank size | BMT55 |
| Interface size | EWS Varia VXT3 EWS Varia VX3 |
| Convertible | No |
| Rotatable main & counter spindle | yes |
| Tool orientation | 90° |
| Alignment system | BMT - keyway |
