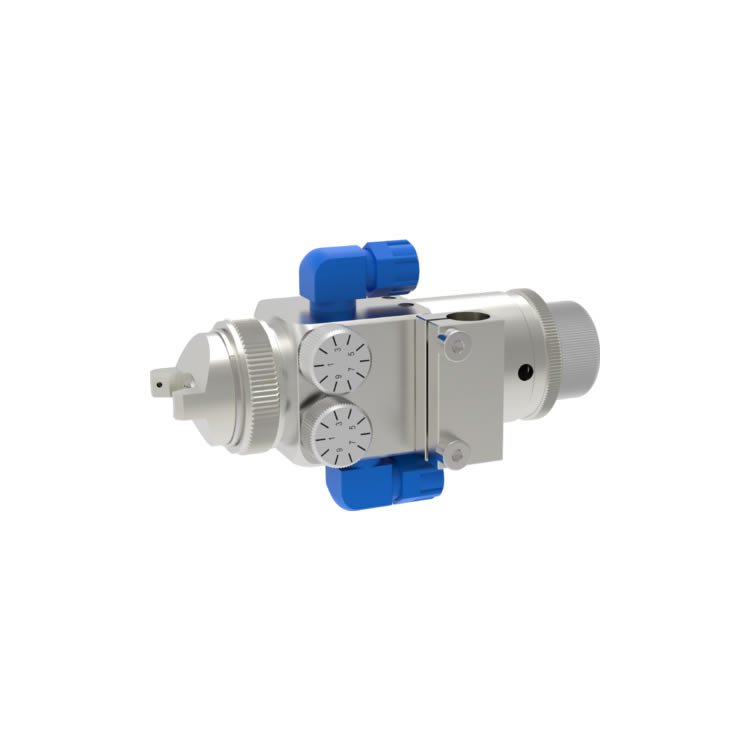

The spray valves of series GF / 3 are designed for the application of paints, colours, release agents, oils, glues, adhesives and other fluids. Fluids of different viscosities can be applied with available different nozzle dimensions.
These spray valves can be used for continuous or intermitted employments. Specials of this valve are the integrated atomizing air valve, which allows an independent regulation of purging air time (for cleaning the nozzle and needle point) and the separate regulation of atomizing air, individual for the cone holes and middle hole. In this way the spray angle can be regulated as needed without changing the air cap.
In version GF / 3 HVLP also available with less overspray.
available nozzle dimensions:
ø 0.2 / 0.3 / 0.5 / 0.8 / 1.0 / 1.2 / 1.4 / 1.5 / 1.7 / 2.0 / 2.5 / 3.0 / 3.5 mmwith ratchet regulator for easy adjusting amount of fluid.
with mounting clamp
integrated atomizing air valve
continuously adjustable regulation of spray jet from round- to flat spray
also available in stainless steel (AISI 303 and AISI 316 L)
Technical data:
| Material pressure: | max. 15 bar |
| Control air pressure: | min. 3.5 bar |
| Atomizing air pressure: | as required |
| Measurements: | 130 x 81 x 72 mm (incl. connections) |
| Weight: | approx. 685 g |
| Valve body: | aluminium, chemically nickel plated |
| Nozzle + needle: | stainless steel |
