ARI-PRESO

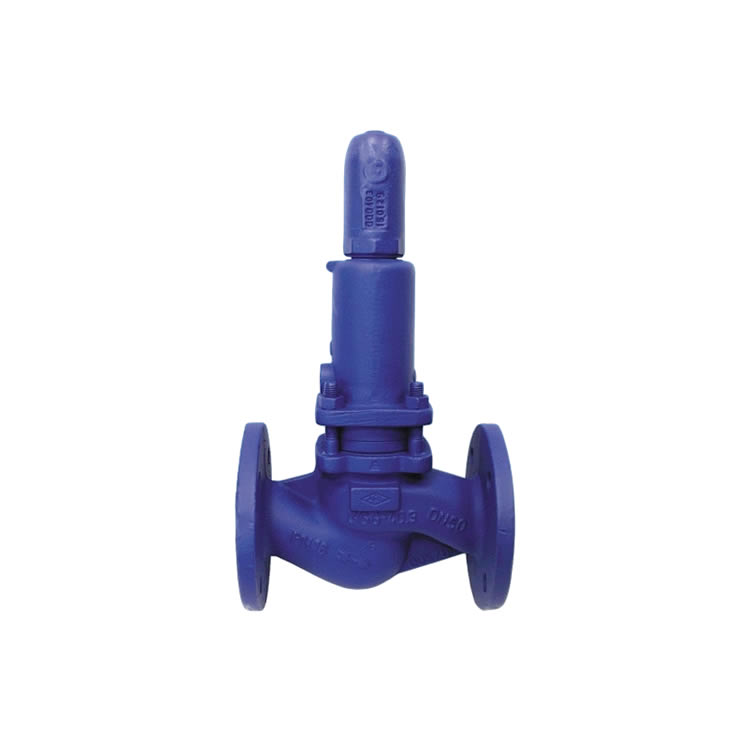

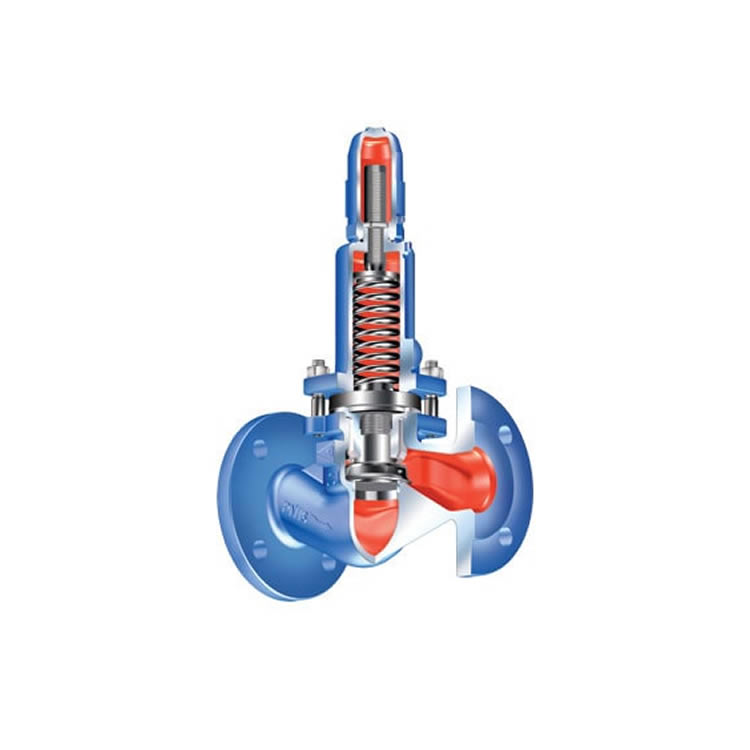

Pressure regulating valve - straight through with flanges - spring loaded
No.: 37010908
Application: Industrial installations, processing technology, plant manufacturing, etc.
Medium: Liquids, gas and vapours, steam
| Figure | PN | DN | Material | Connection | Form | Temp./*body | |
|---|---|---|---|---|---|---|---|
| 12753 | PN 16 | DN 15 | EN-JL1040 | flange | Straight through | -10°C - 350°C | |
| 12753 | PN 16 | DN 20 | EN-JL1040 | flange | Straight through | -10°C - 350°C | |
| 12753 | PN 16 | DN 25 | EN-JL1040 | flange | Straight through | -10°C - 350°C | |
| 12753 | PN 16 | DN 32 | EN-JL1040 | flange | Straight through | -10°C - 350°C | |
| 12753 | PN 16 | DN 40 | EN-JL1040 | flange | Straight through | -10°C - 350°C | |
| 12753 | PN 16 | DN 50 | EN-JL1040 | flange | Straight through | -10°C - 350°C | |
| 12753 | PN 16 | DN 65 | EN-JL1040 | flange | Straight through | -10°C - 350°C | |
| 12753 | PN 16 | DN 80 | EN-JL1040 | flange | Straight through | -10°C - 350°C | |
| 12753 | PN 16 | DN100 | EN-JL1040 | flange | Straight through | -10°C - 350°C | |
| 22753 | PN 16 | DN 15 | EN-JS1049 | flange | Straight through | -10°C - 350°C | |
| 22753 | PN 16 | DN 20 | EN-JS1049 | flange | Straight through | -10°C - 350°C | |
| 22753 | PN 16 | DN 25 | EN-JS1049 | flange | Straight through | -10°C - 350°C | |
| 22753 | PN 16 | DN 32 | EN-JS1049 | flange | Straight through | -10°C - 350°C | |
| 22753 | PN 16 | DN 40 | EN-JS1049 | flange | Straight through | -10°C - 350°C | |
| 22753 | PN 16 | DN 50 | EN-JS1049 | flange | Straight through | -10°C - 350°C | |
| 22753 | PN 16 | DN 65 | EN-JS1049 | flange | Straight through | -10°C - 350°C | |
| 22753 | PN 16 | DN 80 | EN-JS1049 | flange | Straight through | -10°C - 350°C | |
| 22753 | PN 16 | DN100 | EN-JS1049 | flange | Straight through | -10°C - 350°C | |
| 32753 | PN 16 | DN 15 | 1.0619+N | flange | Straight through | -10°C - 350°C | |
| 32753 | PN 16 | DN 20 | 1.0619+N | flange | Straight through | -10°C - 350°C | |
| 32753 | PN 16 | DN 25 | 1.0619+N | flange | Straight through | -10°C - 350°C | |
| 32753 | PN 16 | DN 32 | 1.0619+N | flange | Straight through | -10°C - 350°C | |
| 32753 | PN 16 | DN 40 | 1.0619+N | flange | Straight through | -10°C - 350°C | |
| 32753 | PN 16 | DN 50 | 1.0619+N | flange | Straight through | -10°C - 350°C | |
| 32753 | PN 16 | DN 65 | 1.0619+N | flange | Straight through | -10°C - 350°C | |
| 32753 | PN 16 | DN 80 | 1.0619+N | flange | Straight through | -10°C - 350°C | |
| 32753 | PN 16 | DN100 | 1.0619+N | flange | Straight through | -10°C - 350°C | |
| 52753 | PN 16 | DN 15 | 1.4408 | flange | Straight through | -10°C - 350°C | |
| 52753 | PN 16 | DN 20 | 1.4408 | flange | Straight through | -10°C - 350°C | |
| 52753 | PN 16 | DN 25 | 1.4408 | flange | Straight through | -10°C - 350°C | |
| 52753 | PN 16 | DN 32 | 1.4408 | flange | Straight through | -10°C - 350°C | |
| 52753 | PN 16 | DN 40 | 1.4408 | flange | Straight through | -10°C - 350°C | |
| 52753 | PN 16 | DN 50 | 1.4408 | flange | Straight through | -10°C - 350°C | |
| 52753 | PN 16 | DN 65 | 1.4408 | flange | Straight through | -10°C - 350°C | |
| 52753 | PN 16 | DN 80 | 1.4408 | flange | Straight through | -10°C - 350°C | |
| 52753 | PN 16 | DN100 | 1.4408 | flange | Straight through | -10°C - 350°C | |
