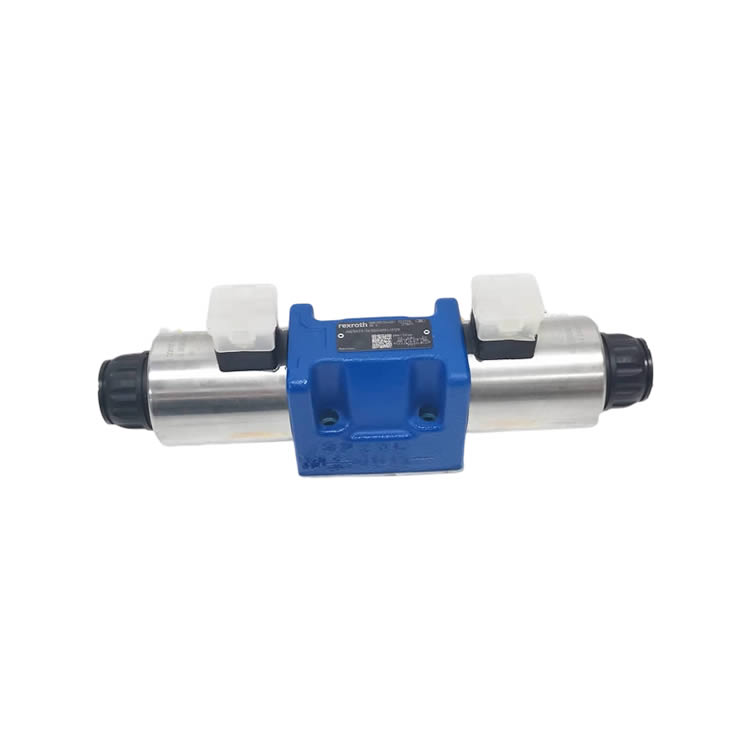

Rexroth 4WE10H73-5X/EG24N9K4/A12M Solenoid Directional Valve
Brand: Bosch Rexroth
Model: 4WE10H73-5X/EG24N9K4/A12M
Model Number Breakdown
4WE: 4-way wet-armature solenoid spool directional valve
10: Nominal size NG10 (CETOP05), mounting surface standard ISO4401
H73: Spool type "H" (center position P, A, B, T all connected); "73" represents spool flow characteristics
5X: 5X series version (product design iteration, seal and structural version)
E: Wet-armature solenoid (oil-immersed coil)
G24: Coil voltage DC24V
N: NBR nitrile rubber seals
9K4: With manual override, K4 type DIN plug
A12M: Additional version code, including coil rotation, protection and other customized configurations
Specifications
| Item | Specification |
|---|---|
| Product Type | 4/3 solenoid directional valve (3-position, 4-way) |
| Nominal Size | NG10, max. flow 160 L/min |
| Max. Pressure | Ports P/A/B: 350 bar; Port T: 210 bar |
| Power Supply | DC24V |
| Seals | NBR nitrile rubber (standard hydraulic oil) |
| Center Position Function | Type H: when de-energized, P, A, B, T all connected, cylinder floats and relieves pressure |
| Mounting | Subplate mounting, ISO4401 standard |
| Accessories | With manual override, DIN43650 plug |
| Media | HL, HLP mineral hydraulic oil; viscosity 2.8-500 mm²/s |
| Oil Temperature | -20°C to +80°C |
Features
Wet-armature solenoid with coil immersed in oil, low wear, long service life, impact resistant, stable shifting. H-function center position with all four ports connected allows the cylinder to float freely and system pressure relief at center. Built-in manual override allows manual testing of shifting when power is off. Standard ISO subplate mounting, highly versatile, direct replacement for same-spec domestic valves. Nitrile seals suitable for ordinary mineral hydraulic oil; supports long-term continuous operation, suitable for machine tools and presses.
