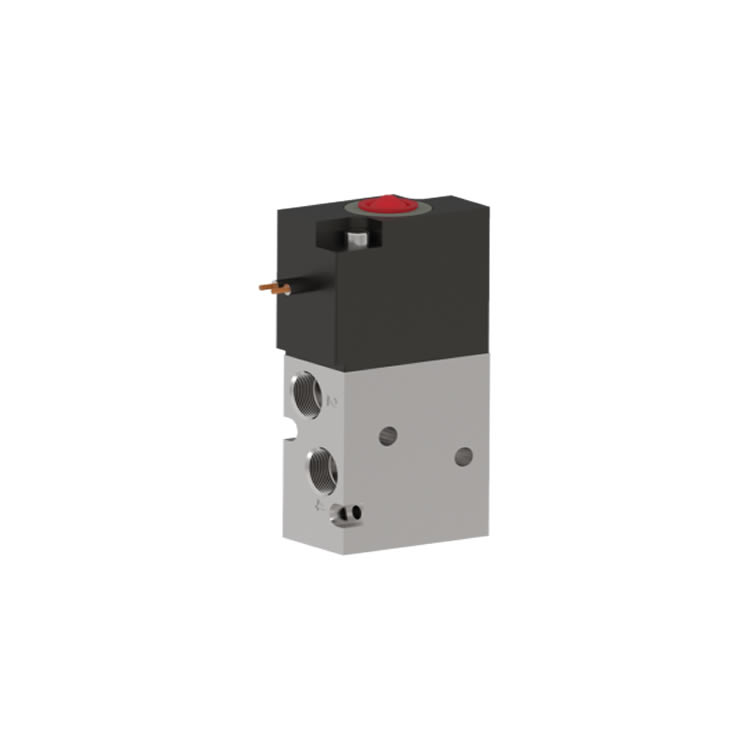

HUMPHREY 4101205060 Solenoid Valve
Product Details
1/8 NPSF, 19mm wide 410 Series is compact, high flow and low cost. Direct acting, the 4-port solenoid valve can operate reliably from vacuum ~ 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector 3-port valve functions, or as 4-way. Ideal for reliable control of double acting cylinders up to 1-1/4" bore (32mm). Consider optional exhaust flow control (code 70). Produced to Humphrey's industry leading, stringent leakage requirements.
Media: Air, Inert Gas, Vacuum
Valve Function: 4-Way Single Solenoid, Multi-Purpose
Voltage: 120/50/60
Pipe Type: Straight, Straight Pipe
Port Size: 1/8 NPSF
Number of Ports: 4 Ports
Number of Positions: 2 Positions
Coil Inlet Orientation: Standard, Above Port 2
Dimensions (Inches) HxWxD: 2.75 x 0.75 x 1.25
Operation Type: Direct Acting
Flow - SCFM @ 100 psig 10
Flow - LPM @ 6.9 bar 283
ESEOD (Orifice) - Inches (mm) 0.088 (2.34)
Flow Coefficient (Cv): 0.14
No Lubrication Required
Pressure Range (psi): -28"Hg-125
Response Time per Step (ms): 12/20
Maximum Duty Cycle: 600 CPM
Ambient Temperature Range (°F) 32~125
Wetted Materials: Anodized Aluminum, Brass, Stainless Steel, Nitrile, Acetal
Weight (oz) 4.0
Electrical Entry Leads - 24 in
Voltage Range: +10%, -15%
Power Consumption (Watts) 4.5
Manual Override: Non-Locking
RoHS Compliant
