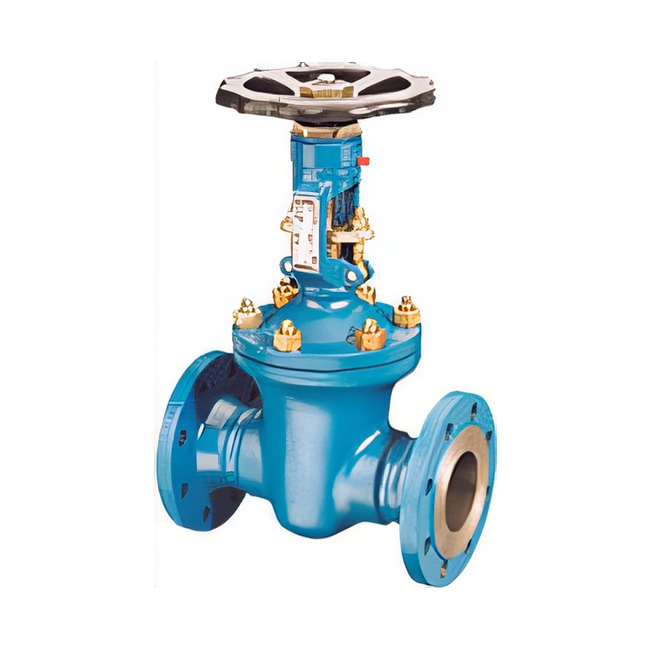

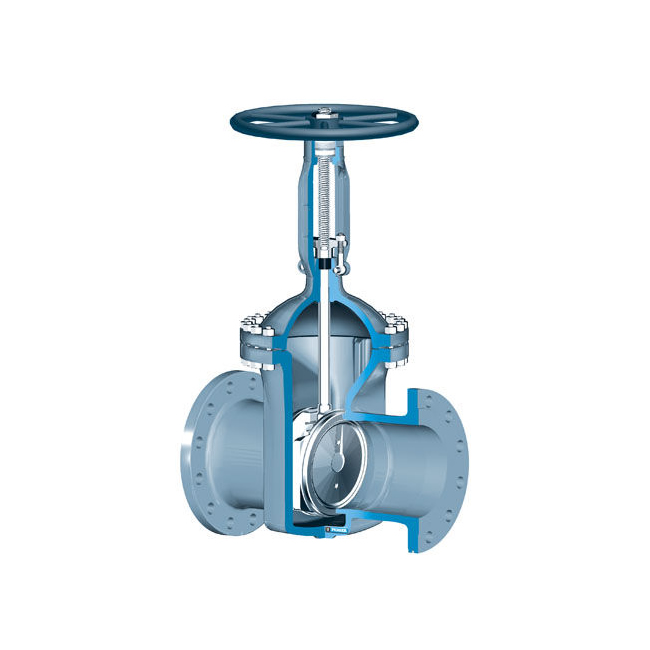

PERSTA 700 JJ 21.1 200/25 Gate valve
Handwheel
Plate round valve with external spindle thread
Forged from 1.0460, hard armored seats
Flanges drilled
Sealing strip according to EN 1092-1 form B1
Length according to DIN (400 mm)
with DN 25 bypass
Bypass fitting: 808GJ21.-
Bypass installed on the right in the direction of flow
Flow direction marked
Design data:
PN 25 according to DIN 2401
Painting:
Standard paint
Underground purity level SA 2.5
Top coat = Luxoral Aqua Primer matt
1-comp. Flood primer based on alkyd resins
with active anti-corrosion pigments
Color: PERSTA blue (similar to RAL 5007)
Dry film thickness: approx. 30 - 50 mµ
Paint manufacturer: Mäder Lacke
Quality measure:
Requirements:
Fittings of category I - III, according to the Pressure Equipment Directive 2014/68/EU,
Conformity assessment procedure Module H and AD2000 leaflet A4.
Fittings =<dn 25:=""
