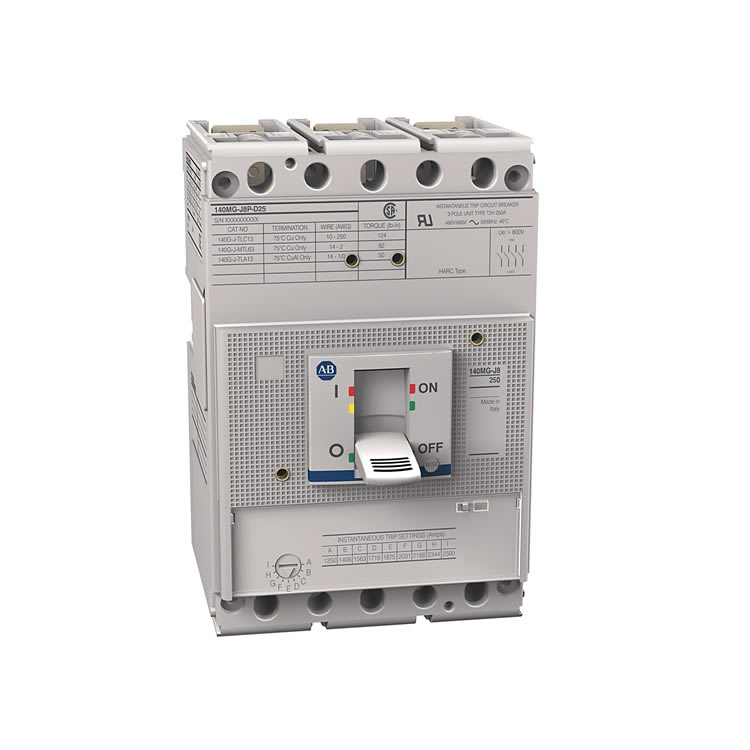

Allen-Bradley 140MG-J8P-D25 Motor protection circuit-breaker
Rated continuous current Iu: 250 A
Closing method: magnetic
Maximum rated operating voltage Ue:690 V
Rated short-circuit breaking capacity Icu, 400 V, AC:70 kA
Rated operating power, AC-3, 400 V:132 kW
With thermal protection:No
Control element type: toggle handle
Main circuit electrical connection type: bolt connection
Number of poles: 3
Structure: Protection degree (IP): IP2X
Dimensions:
Height:160 mm
Width:105 mm
Depth:82.5 mm
Weight:2.5 kg
