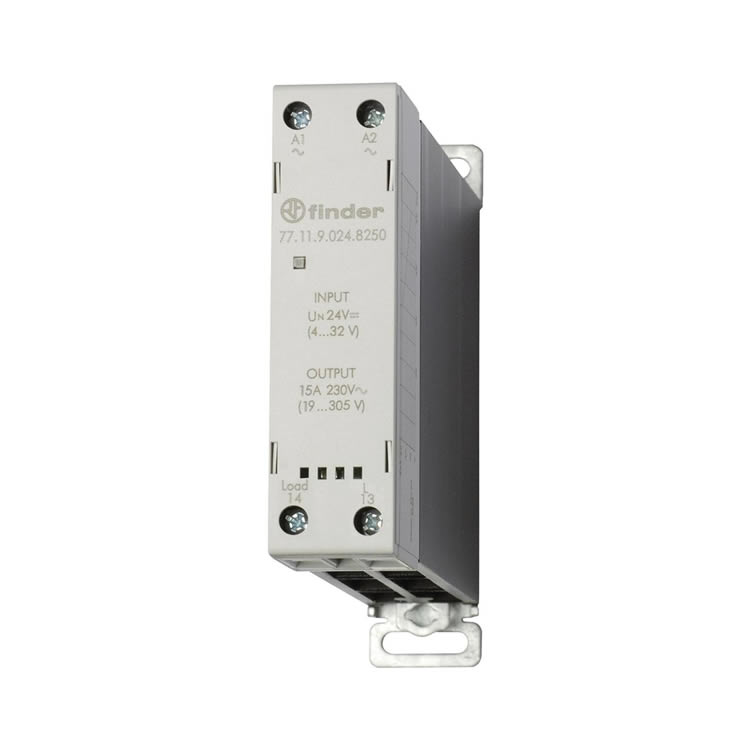

Finder 77.11.9.024.8250 Solid State Relay
Solid State Relay, SPST-NO, 15 A, 32 VDC, DIN Rail, Screw, Zero Crossing
It is a high-performance single-phase solid-state relay designed to replace traditional mechanical relays in industrial automation control systems. It adopts contactless electronic switching technology, has the characteristics of long life, low noise and high switching frequency, and is suitable for resistive, inductive and capacitive load control.
Core Features
✅ High reliability design
Load capacity: 24A @ 250V AC (maximum impact current 100A).
Zero-Crossing trigger: reduce surge current and extend load life.
✅ Wide voltage control
Control signal: 3-32V DC (compatible with low-voltage control such as PLC, microcontroller).
Isolation voltage: 4000V AC (photoelectric isolation to ensure safe separation of high and low voltage).
✅ Industrial-grade durability
Operating temperature: -30°C to +80°C (wide temperature range to adapt to harsh environments).
Protection level: IP20 (needs to be installed in a control cabinet).
✅ Convenient installation
Standard rail installation (in accordance with DIN EN 60715 TH35 standard).
LED status indicator: Real-time display of switch status.
Technical parameters
Type: Single-phase solid-state relay (Zero-Crossing)
Load voltage: 24-250V AC
Load current: 24A (continuous)
Control voltage: 3-32V DC
Switching time: ≤10ms
Insulation resistance: >100MΩ @ 500V DC
