Yaskawa CIMR-JC4A0007BAA Frequency converter

Date: 2025-05-28

Models: CIMR-JC4A0007BAA

Price: Phone or Email Inquiry

Do you have any questions about this product? Please contact our customer service by phone number +852 30623028 Or Quick Inquiry Form.

Product Overview

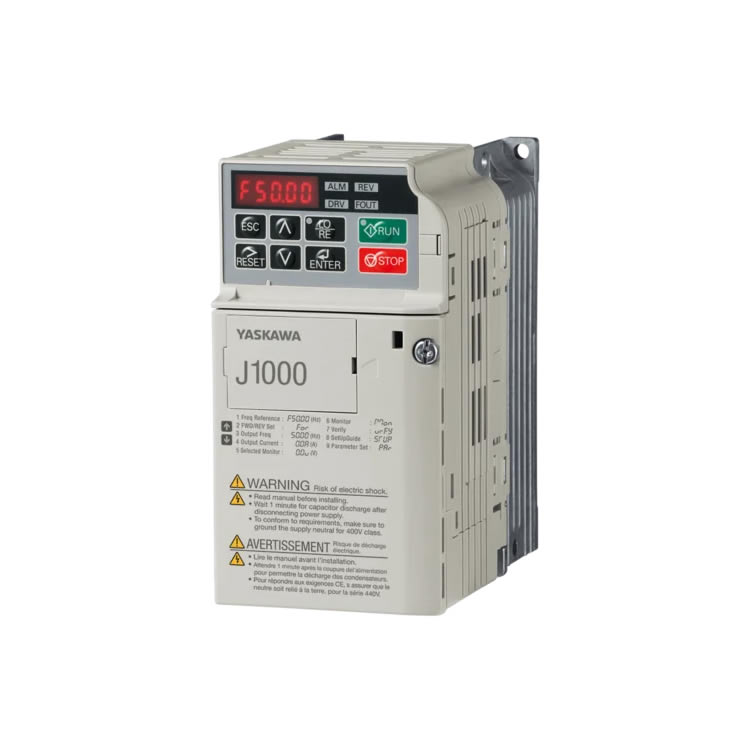

Yaskawa CIMR-JC4A0007BAA Frequency converter

Technical details

Input power: 400V

Rated output current (HD): 5.5A

Rated output current (ND): 6.9A

Overload tolerance (ND): 120% for 60 seconds

Overload tolerance (HD): 150% for 60 seconds

Maximum applicable motor power (HD): 2.2kW

Maximum applicable motor power (ND): 3kW

Number of input power phases: Three-phase

Motor type "Induction motor"

Standards compliance: cUL, CE, RoHS, UL, UKCA

Ambient temperature (minimum): -10 degrees Celsius

Ambient temperature (maximum): 40 degrees Celsius

Ambient temperature (maximum) when derated: 50 degrees Celsius

Maximum humidity (non-condensing): 95%

Maximum altitude (no derating): 1000 meters

Maximum altitude (derating): 3000 meters

Height: 128 mm

Width: 108 mm

Depth: 154 mm

Weight: 1.7 kg

Maximum output frequency: 400 Hz
