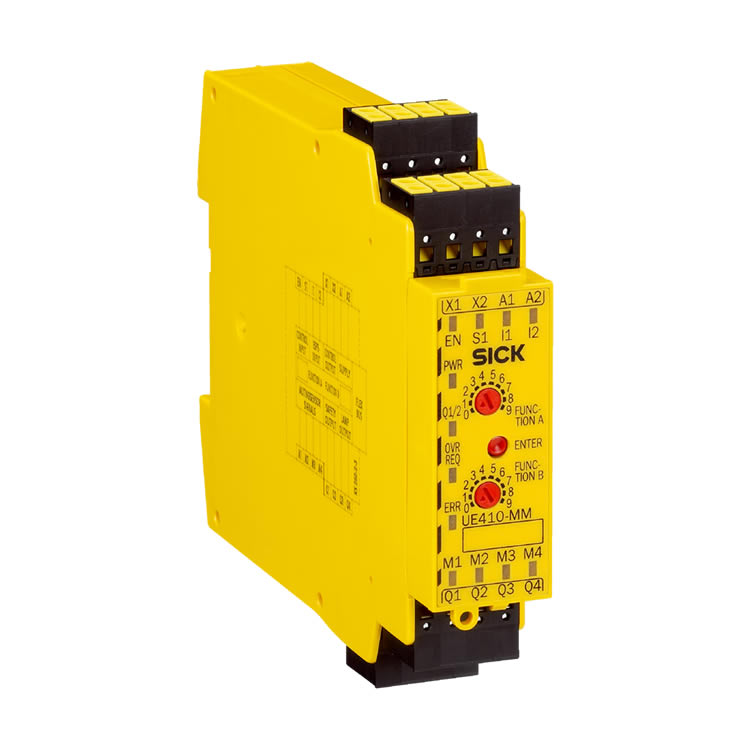

SICK UE410-MM3 Safety relays
Dimensions (W x H x D):22.5 mm x 96.5 mm x 120.8 mm
Weight:+ 180 g
Protection class: III (EN 61140)
Supply voltage type: PELV or SELV 1)
Supply voltage VS: 24 V DC (19.2 V DC ... 30 V DC)
Residual ripple: ≤ 10 %
Power consumption: ≤ 3 W (DC)
Switch-on time: ≤ 10 s
Internal power consumption: ≤ 3 W (DC)
Enclosure rating
Housing :IP40 (EN 60529)
Terminals:IP20 (EN 60529)
Ambient operating temperature –25 °C ... +55 °C
Storage temperature:–25 °C ... +70 °C
Air humidity:≤ 95 %, Non-condensing
Climate conditions according to: EN 61131-2 (55 °C ambient operating temperature, 95% rel. humidity)
Electromagnetic compatibility (EMC):Class A (EN 61000-6-2, EN 55011)
Vibration resistance:5 g RMS, 5 Hz ... 500 Hz (EN 60068-2-64)
