SICK SGS4-S108P3PS2W06 Automation light grids

Date: 2025-05-21

Brand: SICK

Models: SGS4-S108P3PS2W06

Price: Phone or Email Inquiry

Do you have any questions about this product? Please contact our customer service by phone number +852 30623028 Or Quick Inquiry Form.

Product Overview

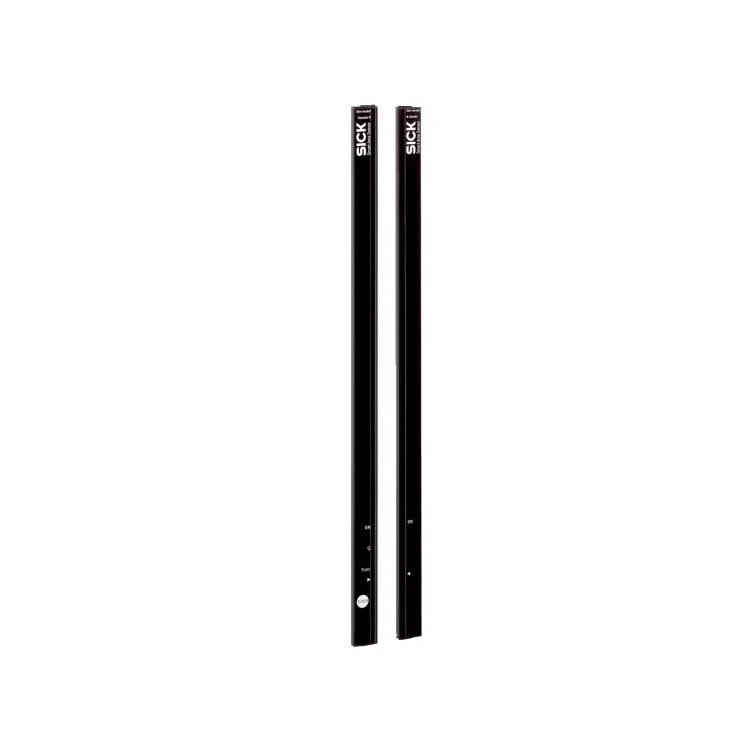

SICK SGS4-S108P3PS2W06 Automation light grids

Sensor principle: emitter/receiver

Minimum detectable object (MDO) parallel beam: 45 mm

Beam spacing: 40 mm

Optical light output: slim

Number of beams: 28

Detection height: 1,080 mm

Parameter settings: none

Light source: infrared light

Wavelength: 950 nm

Supply voltage: Vs DC24 V, ± 20 %

Receiver power consumption: ≤ 70 mA

Output current: Imax. 100 mA

Output load, capacitive 100 nF

Output load, inductive 1 H

Dimensions (W x H x D) 36.5 mm x 1,152.4 mm x 12.4 mm

Connection type: cable with 4-pin M8 male connector

Housing material: PMMA

Indicator: LED

Synchronization: optoelectronic

Protection class: IP65

Circuit protection

UV connection, reverse polarity protection

Output Q short-circuit protected

Interference pulse suppression

Protection class III

Weight: 140 g

Pulse frequency: 500 kHz

Aluminum stabilizer: With stabilizer
