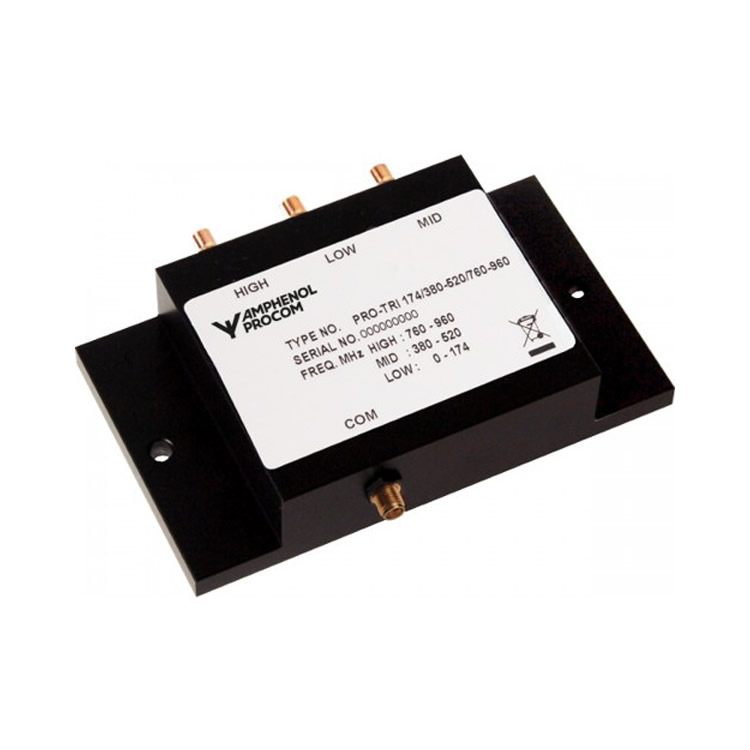

Model: PRO-TRI 174/380-520/760-960-SMA
Frequency:
COM-LOW port: 0 - 174 MHz
COM-MID port: 380 - 520 MHz
COM-HIGH port: 760 - 960 MHz
Max. Input Power: 30 W
Max. Input Power Per Channel:
LOW port: 30 W
CW MID port: 30 W CW
HIGH port: 30 W CW
Insertion Loss:
COM-LOW port (0 - 174 MHz): ≤ 0.4 dB
COM-MID port (380 - 520 MHz): ≤ 0.6 dB
COM-HIGH port (760 - 960 MHz): ≤ 0.7 dB
Impedance: 50 Ω
Isolation: > 50 dB
VSWR: < 1.5:1
