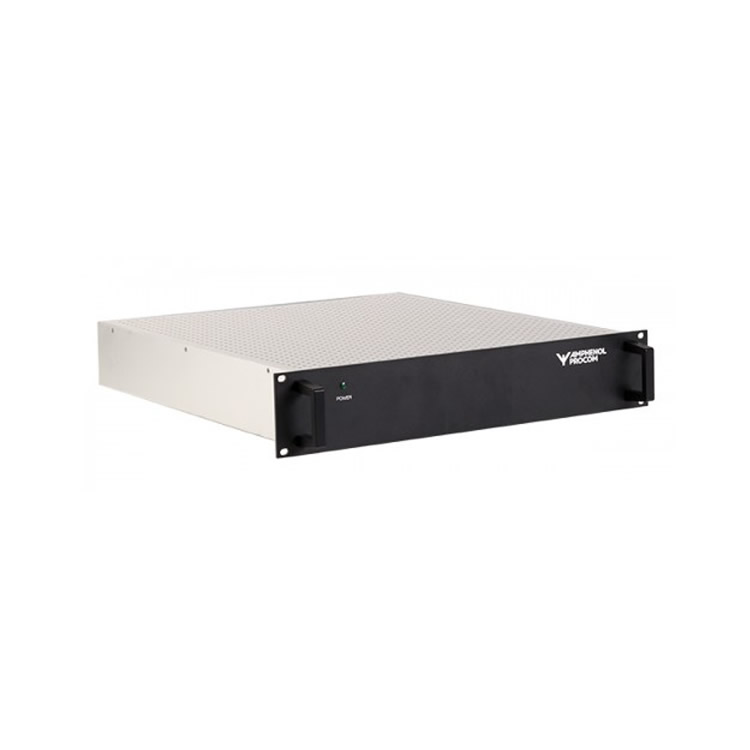

Model: PRO-HDAR450-3
Frequency:
L: 380 - 400 MHz
H: 406 - 470 MHz
Max. Input Power: 50 W (per channel)
Spacing (Tx-Rx): ≥ 5 MHz
Spacing (Tx-Tx): ≤ 2 MHz
Isolation (Tx - Rx):
Tx - Tx spacing < 0.5 MHz: > 85 dB
Tx - Tx spacing > 0.5 MHz: > 65 dB
Insertion Loss: 7.4 dB
Impedance: 50 Ω
Ant-Tx Isolation: > 40 dB @ 25 °C
Isolation (Rx-Rx): > 20 dB
Isolation (Tx-Tx): > 70 dB @ 25 °C
VSWR: ≤ 1.5:1
LNA Noise Figure: < 3.5 dB
Gain (Rx): 1 dB ±1 dB (factory-set)
Number of Channels: 3
