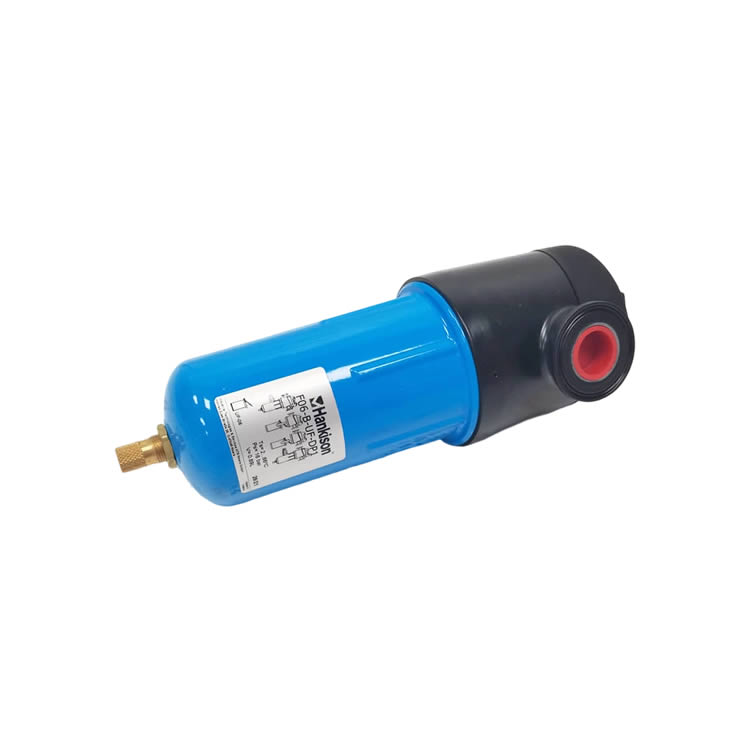

HANKISON F06-B-UF-DP1 Compressed Air Precision Filter
Brand: HANKISON (SPX Flow)
Model: F06-B-UF-DP1
Model Number Breakdown
F06: Housing size 06, nominal flow 75 SCFM
B: Aluminum filter bowl
UF: Ultra-high efficiency coalescing element, 0.01μm, oil removal grade
DP1: Built-in differential pressure indicator for visual indication of element blockage
Specifications
| Item | Specification |
|---|---|
| Filtration Rating | 0.01μm |
| Residual Oil Content | ≤ 0.01 ppm |
| Port Size | 3/4" NPT female |
| Rated Flow | 75 SCFM (standard conditions) |
| Max. Operating Pressure | 250 psi (approx. 17.2 bar) |
| Operating Temperature | 1.7°C to 65.6°C |
| Housing Material | Die-cast aluminum alloy, epoxy powder coating for corrosion protection |
| Filter Bowl Material | Aluminum |
| Filter Media | Borosilicate glass fiber deep pleated element |
| Drain | Built-in zero air-loss float-type automatic drain |
| Weight | Approx. 1.4 kg (3.1 lbs) |
Features
Patented Venturi-Wave element design ensures uniform airflow distribution, lower pressure drop and energy savings; deep-bed pleated media provides high dirt holding capacity. UF ultra-high efficiency coalescing grade removes oil mist, fine solid particles and liquid water from compressed air, achieving clean oil-free compressed air. Aluminum bowl version is impact resistant and suitable for high-temperature environments. DP1 differential pressure indicator provides visual color-change indication for element replacement without additional differential pressure gauges. Built-in float-type automatic drain discharges condensate without loss of compressed air. Modular design for easy assembly and disassembly; element is individually replaceable and housing can be reused long-term. Complies with ISO 8573-1 compressed air quality standards and passes ISO 12500 filter media testing.
