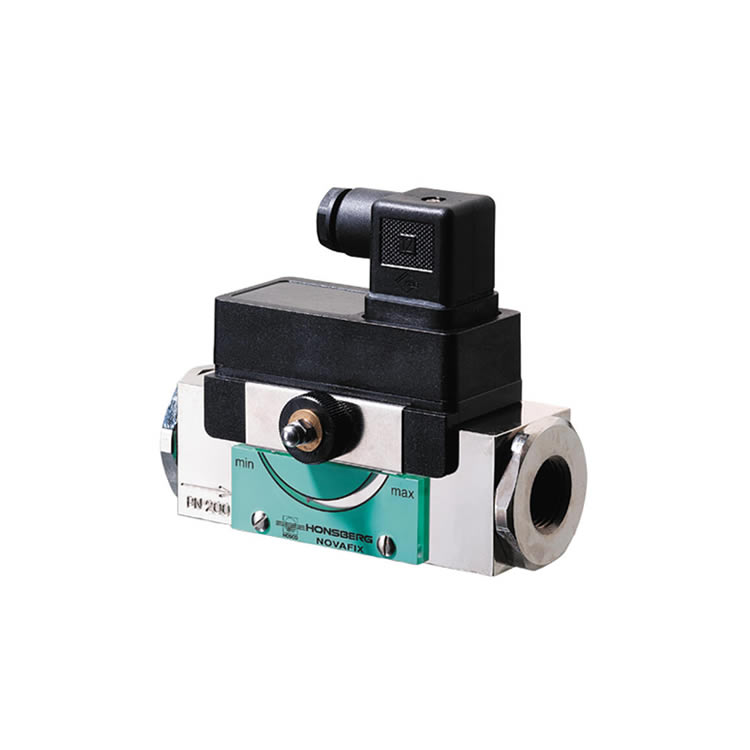

Model HD1K is a flow switch for liquids and gases. It has a built-in scale that shows where in the working range switching point is set. The switch can also deal with media with high viscosity, which makes it highly suitable for hydraulic applications.
Switching Range 0,1..80 l/min H₂O
Water, Oil (gases and aggressive media available on request)
G¼" up to G1"
Brass or Stainless Steel Wetted Parts
Max Pressure 200 bar
Flow switch 1/4" 0,5-5 l/min
Art: HD1K-008GM005
Flow switch 3/8", 1-10 l/min
Art: HD1K-010GM010
Flow switch 1/2", 3-30 l/min
Art: HD1K-015GM030
Flow switch 3/4", 4-40 l/min
Art: HD1K-020GM040
Flow SW.6-60L/MIN,G1
Art: HD1K-025GM060
Flow switch 1/4" s.s. 0,5-5 l/min
Art: HD1K-008GK005
Flow switch 3/8" s.s. 1-10 l/min
Art: HD1K-010GK010
Flow switch 1/2" s.s. 3-30 l/min
Art: HD1K-015GK030
Flow switch 3/4" s.s. 4-40 l/min
Art: HD1K-020GK040
Flow switch 1" s.s. 6-60 l/min
Art: HD1K-025GK060
