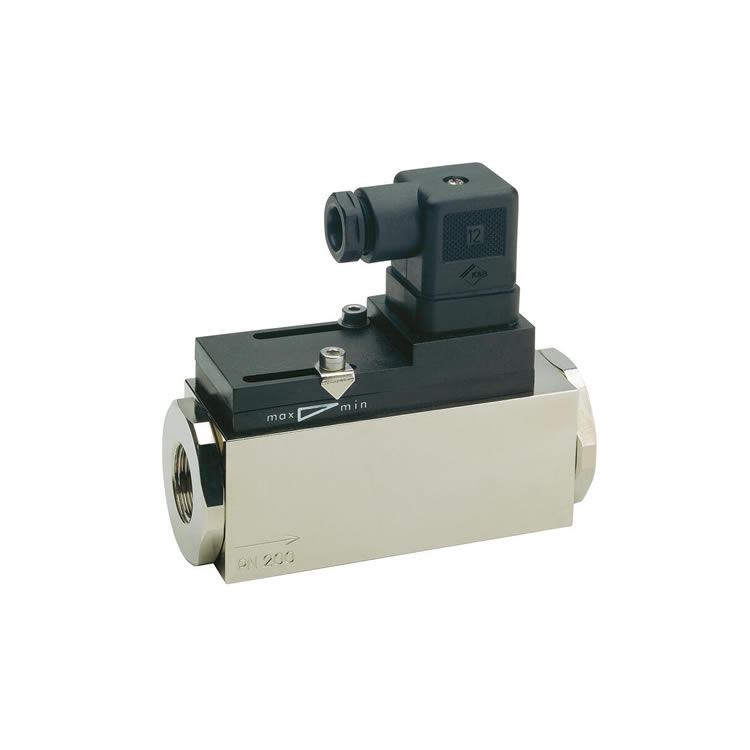

Model MR1K is a flow switch for liquids and air/gases. It is in a robust and compact version. The switch can be ordered in a large variety of special versions including integrated flow meter, selectable switching range and high pressure version.
Switching Range 0,4..60 l/min H²O
Water (oils, gases and aggressive media available on request)
G¼ up to G1
Brass or Stainless Steel Wetted Parts
Max Pressure 200 bar
Flow switch 1/4", 0,4-4 l/min
Art: MR1K-008GM004
Flow switch 3/8", 1-10 l/min
Art: MR1K-010GM010
Flow switch 1/2", 2-20 l/min
Art: MR1K-015GM020
Flow switch,3/4", 4-40l/min
Art: MR1K-020GM040
Flow switch 6-60l/min, G1, brass, DIN
Art: MR1K-025GM060
Flow switch 1/4" S/S, 0,4...4 l/min
Art: MR1K-008GK004
Flow switch 3/8" s.s. 1-10 l/min
Art: MR1K-010GK010
Flow switch 1/2" s.s. 2-20 l/min
Art: MR1K-015GK020
Flow switch 3/4" s.s. 4-40 l/min
Art: MR1K-020GK040
Flow switch,1" s.s. 6-60l/min
Art: MR1K-025GK060
