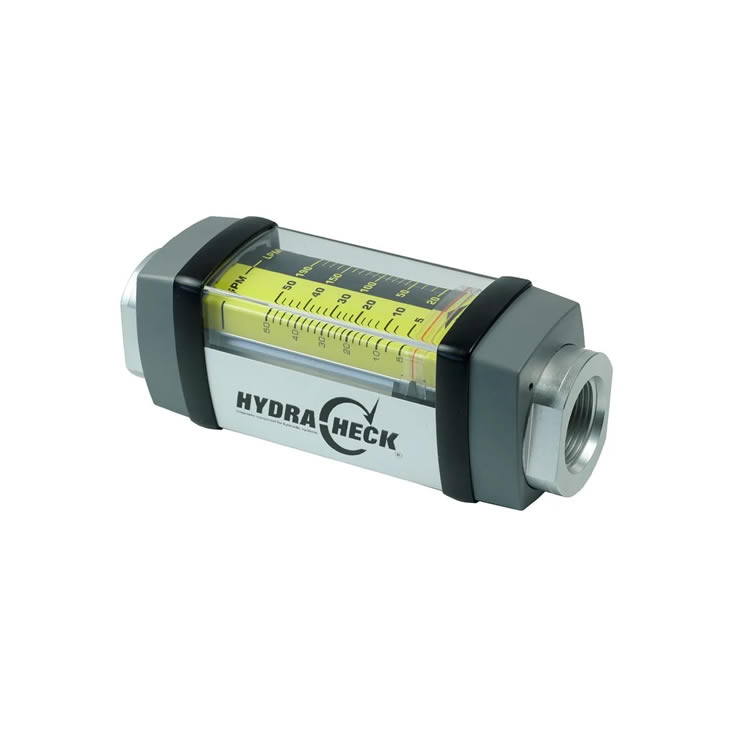

Inline Flow Meter, 5 GPM, 3500 PSI
An inline flow meter is ideal for monitoring pump performance and media flows in hydraulic systems.
0.5 – 5 GPM (2 – 19 Lpm).
Use these flow meters to setup, adjust and test hydraulic pumps, motors, cylinders and more!
The only way to test a pump and motors safely and effectively is to use a flow meter.
Specifications:
Materials: 2024 – T351 Anodized aluminum body, piston and cone.
Pressure Seals: Viton®
Threads: SAE J1926/1
Temperature Range: -20 to +240 °F (-29 to +116 °C)
Pressure Rating: Aluminum Operating: 3,500 psi/241 bar max. with a 3:1 safety factor.
Accuracy: ±2% of full scale
Repeatability: ±1%
Calibration: 0.876 Specific Gravity – For use with hydraulic oil
