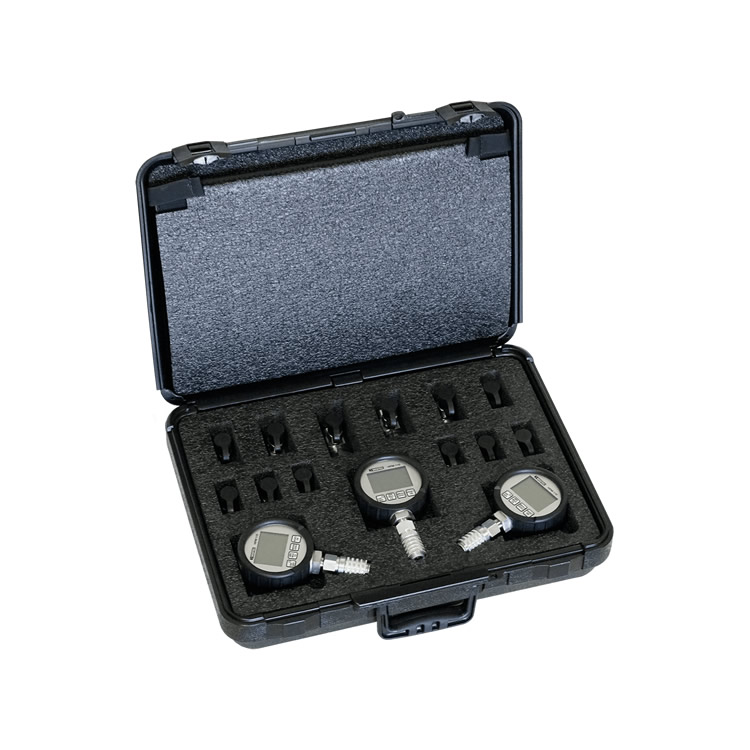

Three Service Junior pressure gauges with manuals.
Six (6) JIC tees with diagnostic test nipple – JIC: #4, #6, #8, #10, #12, #16.
Six (6) ORFS tees with diagnostic test nipple – ORFS: #4, #6, #8, #10, #12, #16.
One (1) microbore hose assembly for use with each gauge.
One (1) durable carry-case with three (3) removable storage compartments.
Kit Specifications:
Pressure gauge has a simple to operate 4 key menu.
Pressure gauge range:
0 to 5800 PSI (0 to 400 bar).
0 to 1500 PSI (0 to 103.4 bar).
-14.5 to 230 PSI (-1 to 15.8 bar).
Min. and max. graphic display shows pressure peak.
Measure PSI, bar, mPa, kPa with one gauge.
JIC tees up to 6000 PSI (414 bar).
ORFS tees rated for 6000 PSI (414 bar).
Weight:17.00 lbs
Dimensions:19 × 5 × 14.5 in
Number of Pressure Gauge :3
Pressure Gauge:
230 PSI
1450 PSI
5800 PSI
16 Bar
100 Bar
400 Bar
