Electrical

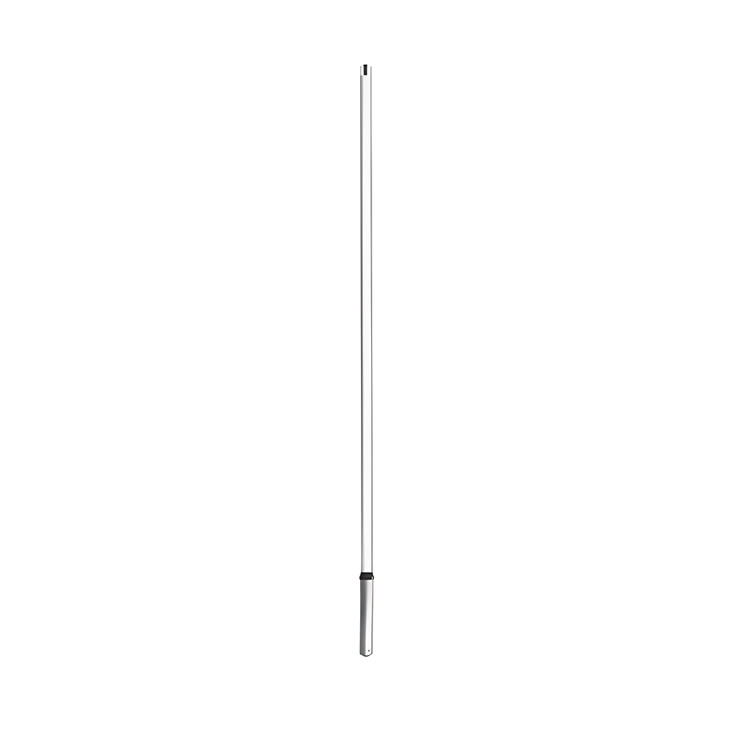

Model: 4220.06-405-T0
Frequency: 380 - 430 MHz
Maximum Input Power: 300 W
Full Deviation: < ± 1 dB
Polarization: Vertical
Peak Instantaneous Power (PIP): 25 kW
3 dB Beamwidth, E-plane: 16° ±1°
3 dB Beamwidth, H-plane: Omnidirectional
Impedance: 50 Ω
Gain: 6 dBd (8.2 dBi)
VSWR: < 1.5:1
Passive Intermodulation: -153 dBc (third-order, 2 x Tx @ 43 dBm)
(PIM value is not guaranteed for the N-connector version)
Lightning: Lightning Current Handling Capacity:
200 kA, in compliance with EN 62305-1 (test pulse 10/350 μs)
