30" Hg to 30 PSI (-1.0 mm Hg to 2.0 Bar)

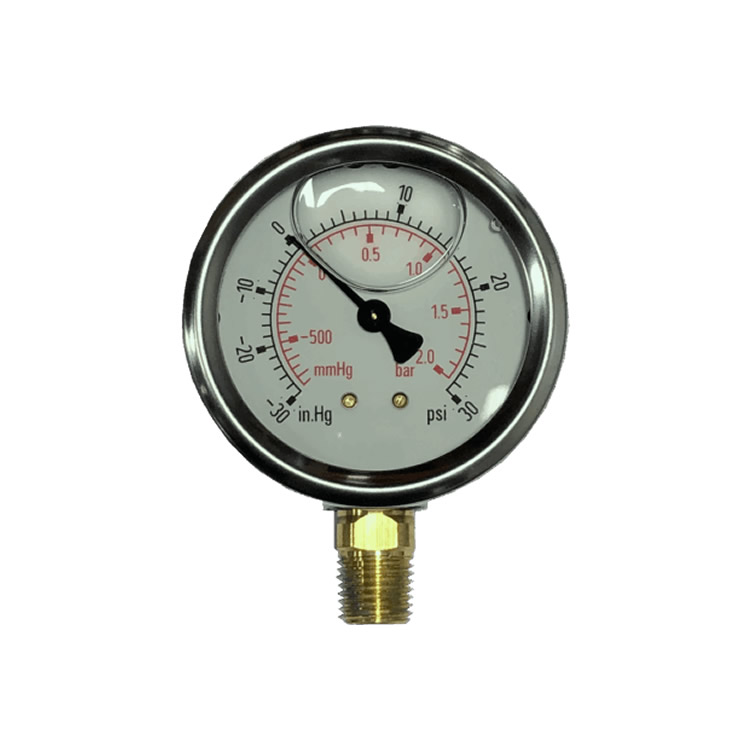

Vacuum Gauge, 30″ Hg to 30 PSI
Highest quality, liquid-filled gauges available in the market today! Features a stainless steel case for protection in harsh environments. Intended for adverse service conditions where pulsating and vibration exists. Suitable for gaseous or liquid media that will not obstruct the pressure system.
Features:
Glycerin-filled.
PSI and bar scale.
1/4” NPT bottom mount.
Size: 2 1/2″ (63mm).
Made in Europe.
Specifications:
Design: ASME B40.100 & EN 837-1
Accuracy: ±1.6% of full scale
Ambient Temperature: -4 – +140°F (-20 – +60°C)
Medium Temperature: +140°F (+60°C) Maximum
Weather Protection: Weather tight (NEMA 4X/IP65)
Lens: Polycarbonate
Pressure Connection Material: Copper alloy
Bourdon Tube Material: Copper alloy
Movement: Brass and nylon with highly polished bearing surfaces
Dial Material: Molded plastic, UV Resistant
Pointer Material: Molded plastic
Case: 304 stainless steel with vent plug and stainless steel crimp ring. Suitable for liquid filling. Case connection sealed with O-ring.
