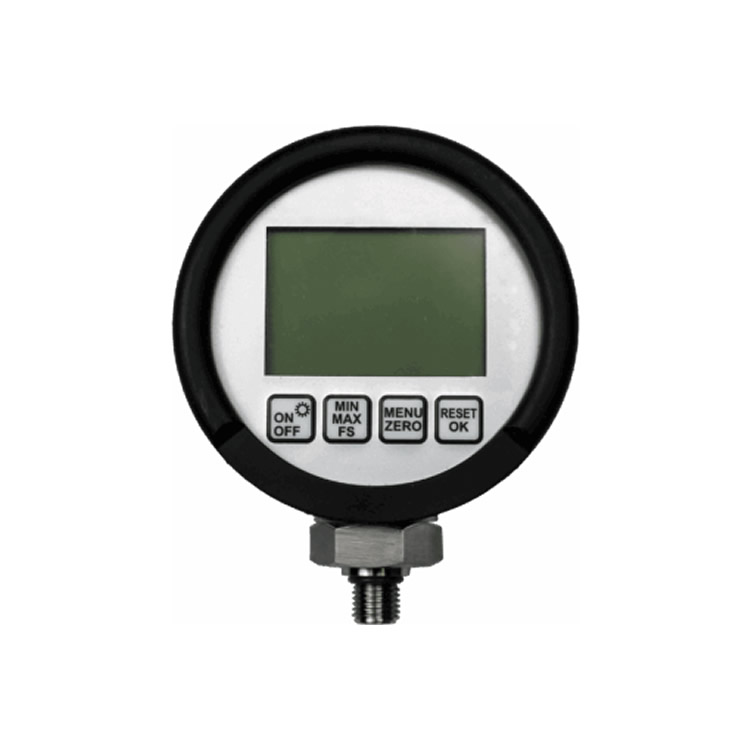

Digital Pressure Gauge, 230 PSI
The HC-063-DIGI-230 digital pressure gauge offers a quick solution to monitoring pressure and also peak pressure (pressure spikes). The hand-held unit can be installed when required (using a standard test point) or left permanently connected to a system. Since it is battery-powered, the digital gauge requires no external wiring.
The HC-063-DIGI-230 simultaneously displays actual pressure, peak or minimum pressure, battery level, engineering units, as well as a bar graph indicator. The backlight can be switched on with the press of a button. This digital gauge allows the user to clear the peak value, display min, max, actual pressure, reset the zero point, and change the engineering units.
Measures pressure and min/max pressure.
Simple operation.
Background lighting
Zero correction
Battery charge display
Comes with a 1/4″ NPT adapter
Made in Germany
Specifications:
Pressure Range: -14.5 to +230 PSI (-1 to -16 bar)
Overload Pressure: 580 PSI (40 Bar)
Units: PSI, bar, Mpa, kPa, mbar
Accuracy: ±0.5% full scale.
Resolution: 0.1 PSI
Ambient Temperature: 14°F to +122°F (-10° to +50°C)
Media Temperature: -4°F to +176°F (-20° to +80°C)
Storage Temperature: -4°F to +140°F (-20° to +60°C)
Relative Humidity: <85%
Battery Life: 1500 hours (operating without lighting, 2 x AA)
Pressure Connection: 7/16″ (#4) ORB stainless steel
Housing Material: Die-cast zinc with TPE rubber protective coating
Gasket Material: NBR (Buna-N)
Safety Class: EN 60529 (IP67)
Vibration: IEC 60068-2-6 (5g)
Shock: IEC 60068-2-27 (25g)
