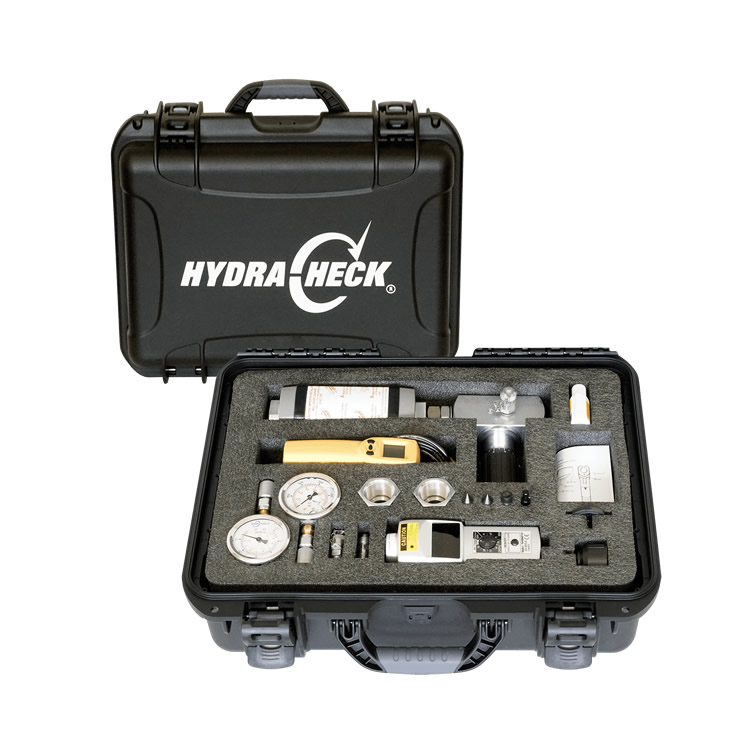

The HC-TK500-RF test kit includes:
5.0 to 50 GPM, 3000 PSI (207 bar), reverse-flow, inline flow meter test kit with adjustable load test cell, and pressure test connector. Comes with SAE straight thread and NPT adaptors.
Compact, hand-held, infrared, laser thermometer.
Non-contact laser tachometer.
0 to 3000 PSI (207 bar), glycerine-filled pressure gauge with direct gauge adaptor.
0 to 30″ Hg (0 to -1.0 bar), glycerine-filled vacuum gauge with direct gauge adaptor – for testing critical pump inlet restriction.
International thread identification kit.
1/4″ NPT pressure test connector – adapts vacuum gauge to the connector at the inlet port of the pump.
60″ (1524 mm) microbore hose assembly – allows you to see gauge pressure from up to 60″ (1524 mm) away from the flow meter.
Microbore hose union – allows you to join two microbore hose assemblies together, or to connect a microbore hose end to a direct gauge adaptor.
The toughest carry case in the industry: unbreakable, lockable, watertight, corrosion-proof, dent-proof, and airtight. Built for tough field conditions. Our cases meet or exceed the highest standards of industrial, airline, military, and commercial applications.
Weight：25 lbs
Dimensions：20 × 8 × 17 in
Type：Reverse-flow
Maximum Operating Pressure：
3000 PSI
207 Bar
