Includes:

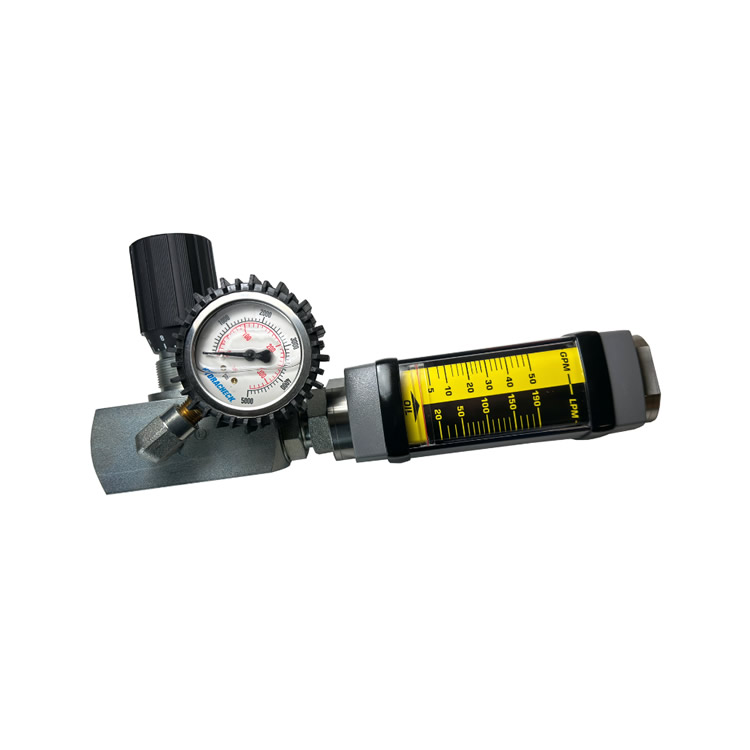

Inline flow meter – 0.2 to 2 GPM (1 to 7.6 Lpm).
Adjustable load valve comes equipped with a 3500 PSI (241 bar) glycerine-filled pressure gauge with a protective rubber boot.
Specifications:
Needle Valve Materials: Carbon steel body, zinc plated
Flow Meter Materials: 2024 – T351 Anodized aluminum body, piston, and cone.
Pressure Seals: Viton®
Threads: SAE J1926/1
Temperature Range: 14 to +212 °F (-10 to +100 °C)
Pressure Rating: Aluminum Operating: 3,500 psi/241 bar max. with a 3:1 safety factor.
Accuracy: ±2% of full-scale
Repeatability: ±1%
Calibration: 0.876 Specific Gravity – For use with hydraulic oil
Weight 3.6 lbs
Dimensions 10.5 × 3 × 4 in
Pressure
3500 PSI (241 Bar)
Flow
0.2 to 2 GPM (1 to 7.5 LPM)
Port Thread
#8 x #10 ORB (SAE)
