Flow: 4 – 30 GPM (15 – 115 Lpm).
Pressure: 6000 PSI (410 bar).
Ports: #12 SAE
Rugged and Reliable – These meters are constructed with all metal pressure vessels that allow safe & permanent installation.

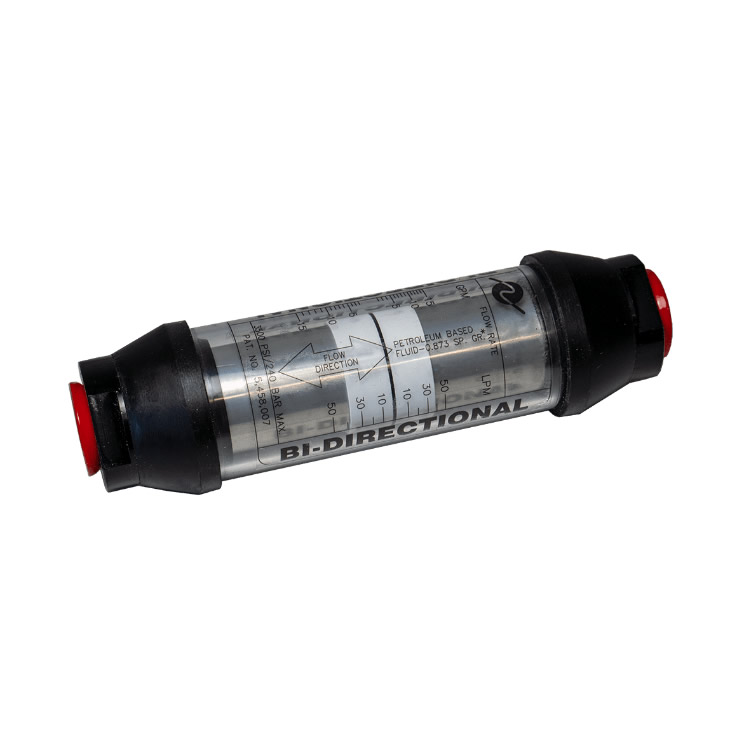

Bi-Directional – Measures bi-directional flow measurement for liquids.
Use these flow meters to set up, adjust, and test hydraulic pumps, motors, cylinders, and more!
The only way to test a pump and motors safely and effectively is to use a flow meter.
Specifications:
Materials: Stainless steel casing and end ports with stainless steel internals.
Pressure Seals: Buna-N®
Threads: SAE J1926/1
Temperature Range: -20 to +240 °F (-29 to +116 °C)
Pressure Rating: Aluminum Operating: 6,000 psi/241 bar max.
Accuracy: ±4% of full scale.
Repeatability: ±1%
Calibration: 0.873 Specific Gravity – For use with hydraulic oil.
Viscosity: Up to 110 cSt.
Weight 3.6 lbs
Dimensions 8.75 × 4.5 × 4.5 in
Pressure
6000 PSI (410 Bar)
Flow
4 to 30 GPM (15 to 115 LPM)
Length
7.16 inches (182 mm)
Port Thread
#12 ORB (SAE)
