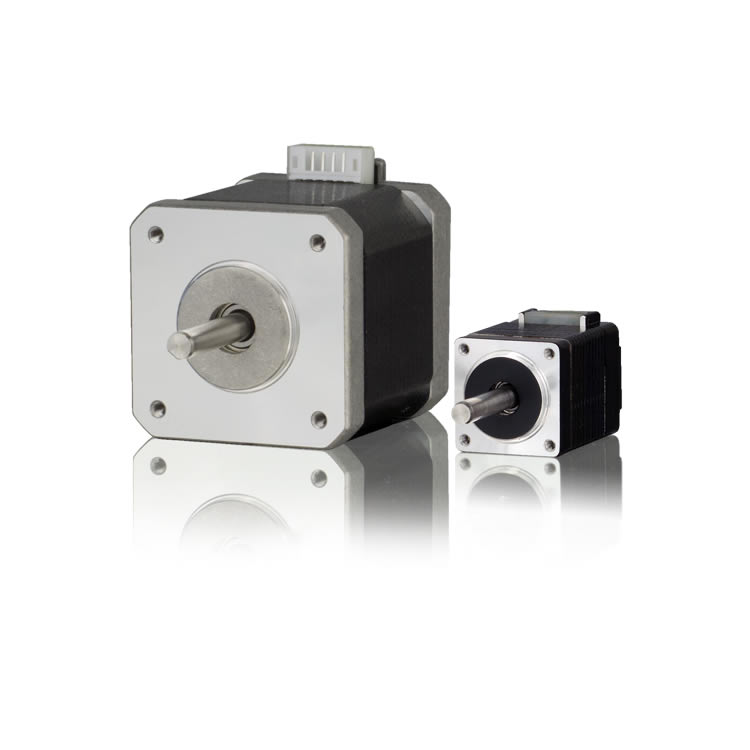

The phyBASICTM motors particularly suitable for standard applications in the manufacturing industries. Good running performance, high torque and solid craftsmanship make the phyBASICTM an excellent choice for environments up to IP 40 when it comes to quick precise positioning tasks.
• 2-phase stepper motors
• Holding torques from 16 mNm to 7.2 Nm
• Edge dimension from 20 to 86 mm
• Number of steps (standard) 200
• Step accuracy 5 % for 1.8° stepper motors
• Operating voltage
phyBASICTM 20,28,42 (NEMA 8,11,17): 48 VDC
phyBASICTM 56,86 (NEMA 23/34): 72 VDC
• Standard connection: 4-lead parallel
• Protection class IP 40
• Insulation class B, 130 °C
• Insulation resistance 100 MΩ
• Operating temperature range -10 to +50 °C (non-freezing)
• Cable with mating connector included
• Options
- Gear
- Rear shaft
