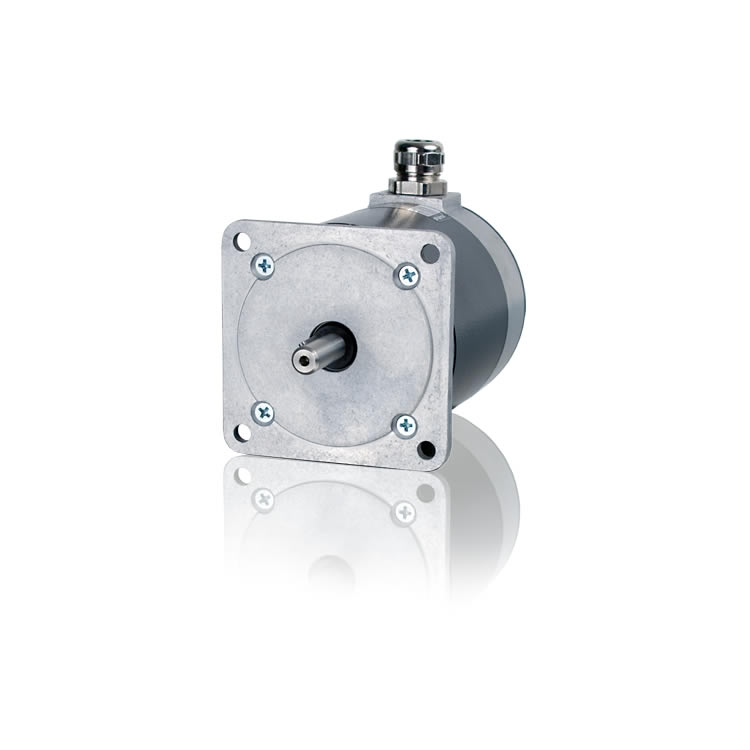

Phytron‘s HARSH-Environment motors are particularly suitable for challenging applications in mechanical engineering and industry. Challenging conditions are solved with the precise running performance, high torque and the motor‘s robust design for environments up to IP68.
Inside climate chambers, adjusting the paper thickness in paper machines, adjusting rotor blades in aviation or directly in a fuel tank: In these and other environments Phytron’s stepper motors and controllers for HARSH Environments provide precise and reliable work.
Technical Details
2-phase hybrid stepper motors for unipolar or bipolar control mode
Holding torques from 0.45 to 17 Nm
Diameters ZSH: 57 to 107
NEMA compatible
Number of steps/rev.: 200, step angle: 1.8°
Minimum protection mode: IP54, IP68 on request
Permissible surface temperature: -30 °C to +80 °C
(short-time up to 100 °C)
Available Models:
Sizes and windings: see table in the data sheet
Free wire ends or terminal box
Double shaft
Gear
Motor brake
Encoder
Markets:
Energy Production, Agricultural Technology and Automotive
biogas plant
labelling technology
industrial 3D printing
assembly automation
deep drilling technology, offshore
deep drilling technology
