Features
This is Optical Data Transmission Device (Parallel I/O) suitable for such as interlocking with carrier robots, indicating destination of AGVs.
＊This is small size and right weight with 50*50*20mm.
＊This device provides light-projecting amount adjuster, and it can adjust the communicating range by it.

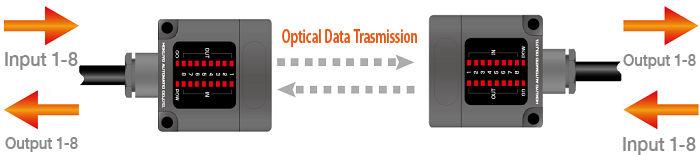

Easy friendly to control with parallel signals
This products have parallel signals of maximum 8 points each for input and output, it does not require difficult signal processing.

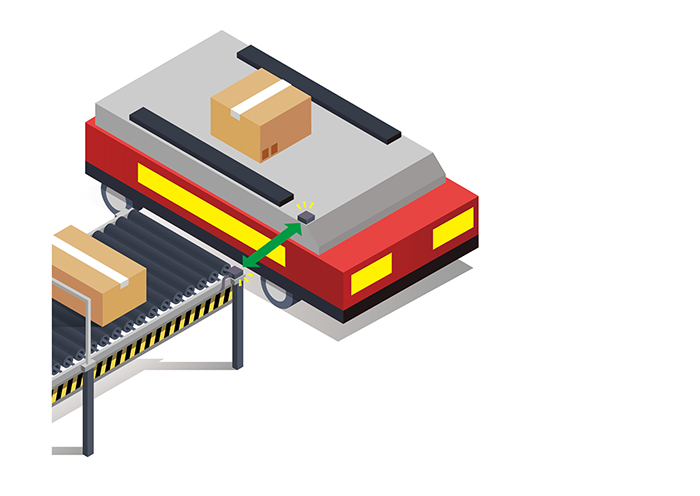

Communicable with wireless between AGVs and Stations
This performs transmission using optical light, so it is possible to communicate wirelessly with mobile vehicles that are hard to lay cables. It can be used for communication to between the stations and mobile vehicles like AGVs to instruct the destination where the vehicles should go.

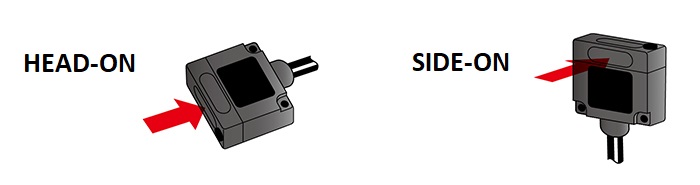

2 types of HEAD-ON and SIDE-ON are lined up.2 types of optical axis direction selectable based on the installation way
Specification
DMS-GA1-C/HA1-C which can be communicated with old type, DM-GA1/HA1 are lined-up.Type Parallel type 4-bit type 8-bit type Model No. DMS-
GA1-VDMS-
GA2-VDMS-
HA1-VDMS-
HA2-VDMS-
GB1-VDMS-
GB2-VDMS-
HB1-VDMS-
