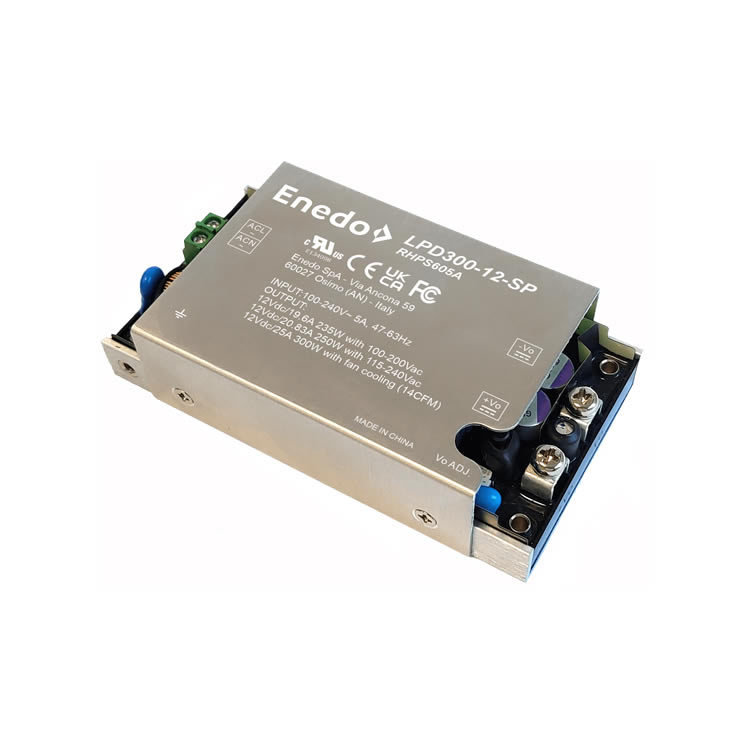

LDP300 Semi-potted AC-DC Power Supplies

Key features

• 85 – 264 VAC Universal input voltage range

• 300 W rated power

• 1.00” low profile package actor (32.1 W/in3)

• High efficiency (up to 94%)

• No-load low power consumption < 0.3 W for all output variants

• Low earth leakage current (<300 µA)

• Over temperature protection, auto-recovery

• Output over voltage latch off protection

• Overload and short circuit hiccup protections

• Metallic protecting cage on semi-potted PWA

• IEC safety installation Class I

• Certified to the latest IEC/EN/UL 62368-1 edition

• Compliant to EN 55032 and certified to CISPR-FCC Class B

• Meet IEC/EN 60335-1 requirements for household appliances

• Operating Altitude up to 5000 m (OVC II), up to 2000 m (OVC III)

• RoHS-3 compliant (EU directive 2015/863)

• 5 years warranty

Applications

• Integrated Wireless Backhaul Mobile LTE-A, 5G

• Desktop 3D Scanners / Printers

• LED Signage / Lighting Systems

• Voice and Data Center Solution

• Fiber Optics Telecommunication Systems

• Video/Imaging Systems
