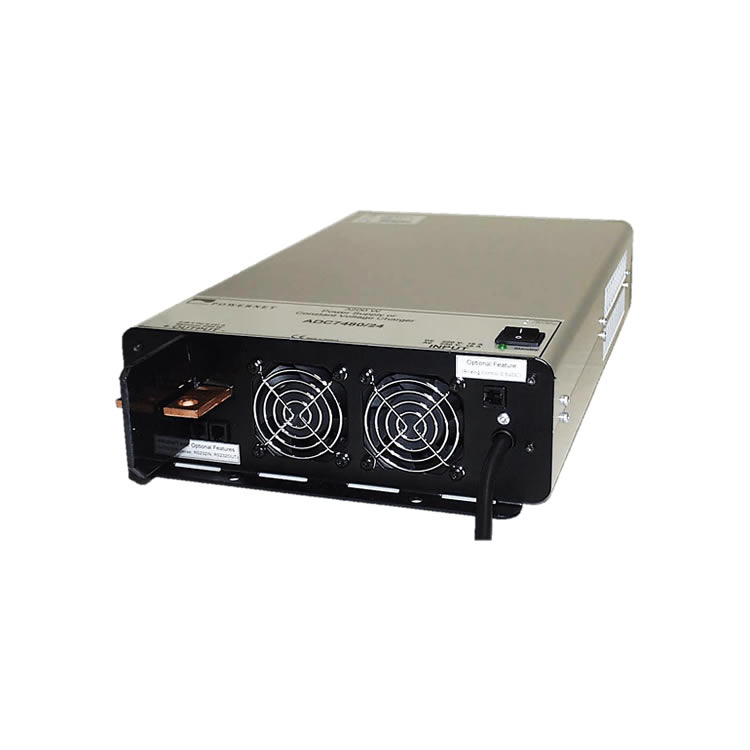

ADC7480 Battery Chargers and Power Supplies 3000W
The Enedo ADC7480 is a high-efficiency, intelligent battery charger and power supply solution featuring wide input voltage range (90-264VAC), programmable output (12-60VDC), and advanced charging algorithms for industrial, telecom, and backup power applications requiring reliable, scalable energy management.
Key features:
800 – 3200W output power range modules
Parallel and series connectable
Master-Slave connection
Wide input voltage range:
70 – 264 VAC
80 – 369 VDC
12, 24, 36, 48, 72 VDC standard output variants
Settable DC output voltage from 0 – 108VDC
Settable output current
Over 100 different model variations
Optional analog control by external 0-5VDC
Optional temperature compensation and charging algorithms
Optional power fail relay alarm
Easy custom modification
Applications:
Industrial battery chargers and power supplies
Various industrial DC supplies
Transportation (Marine, Rail, Electric Vehicles)
Auxiliary DC supply for Telecom and Infrastructure
DC/DC converters for typical 110VDC and 220VDC industrial backup systems
