Brand: Pilz
Model: PNOZ s5 24VDC 2 n/o 2 n/o t
Part No.: 750105

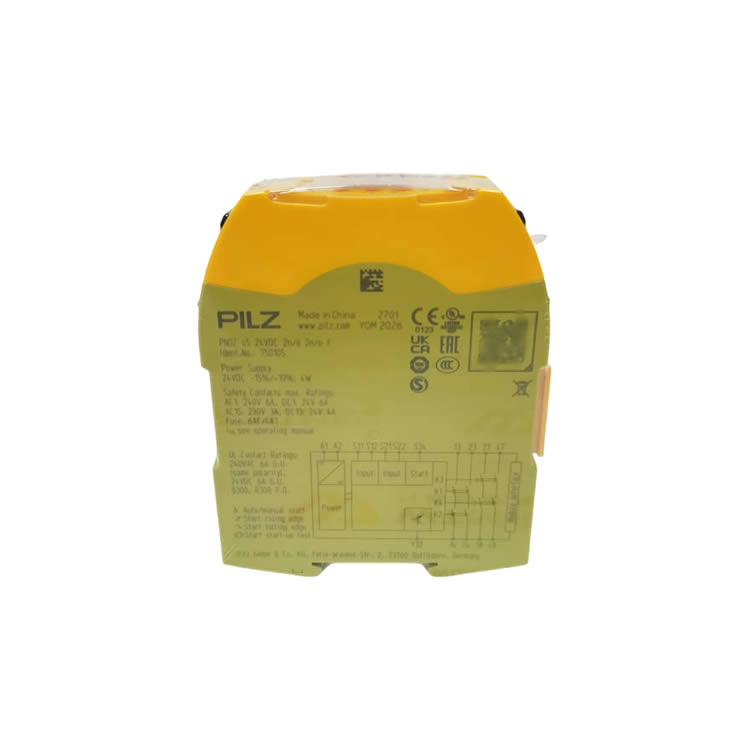

The Pilz PNOZ s5 24VDC 2 n/o 2 n/o t (Part No. 750105) is a standalone safety relay from the PNOZsigma series with time monitoring. It features 1/2-channel wiring with/without detection of shorts across contacts, manual/automatic start, and monitors E-STOP, safety gates, and light curtains .
| Item | Specification |
|---|---|
| Series | PNOZsigma |
| Supply Voltage | 24 V DC |
| Inputs | 1/2-channel wiring with/without detection of shorts across contacts |
| Instantaneous Safety Contacts | 2 N/O |
| Delayed Safety Contacts | 2 N/O t-d (t = 0.04 - 300 s) |
| Signal Output | 1 SC (semiconductor output) |
| Safety Category | 4 |
| Terminal Type | Plug-in screw terminals |
| Width | 22.5 mm |
| Operating Temperature | -10°C to +55°C |
| Protection Type | IP40 |
| Weight | Approx. 0.25 kg |
| Approvals | CCC, CE, UKCA, cULus Listed, KOSHA, EAC, TÜV |
