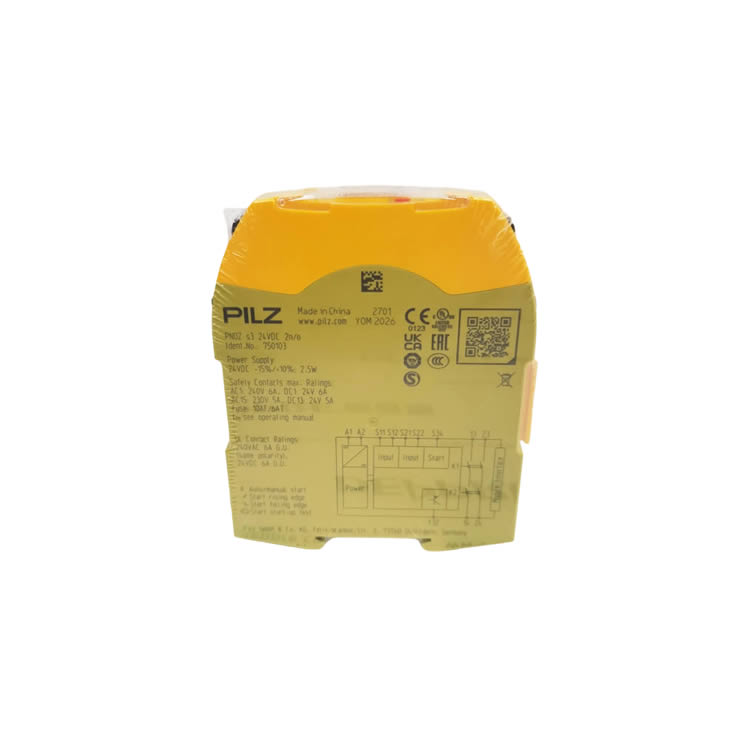

Pilz PNOZ s3 24VDC 2 n/o Safety Relay
Brand: Pilz
Model: PNOZ s3 24VDC 2 n/o
Part No.: 750103
The Pilz PNOZ s3 24VDC 2 n/o (Part No. 750103) is a standalone safety relay from the PNOZsigma series. It features 1/2-channel wiring with/without detection of shorts across contacts, manual/automatic start, and monitors E-STOP, safety gates, and light curtains.
| Item | Specification |
|---|---|
| Series | PNOZsigma |
| Supply Voltage | 24 V DC |
| Inputs | 1/2-channel wiring with/without detection of shorts across contacts |
| Safety Contacts | 2 N/O |
| Signal Output | 1 SC (semiconductor output) |
| Safety Category | 4 |
| Terminal Type | Plug-in screw terminals |
| Width | 22.5 mm |
| Operating Temperature | -10°C to +55°C |
| Protection Type | IP40 |
| Weight | Approx. 0.20 kg |
| Approvals | CCC, CE, UKCA, cULus Listed, KOSHA, EAC, TÜV |
