Name | Type | P2 (kW) 50Hz / 60Hz | 50/60Hz dual | DN (BSPP-SAE) | Qmax 50Hz | Hmax 50Hz |
|---|---|---|---|---|---|---|

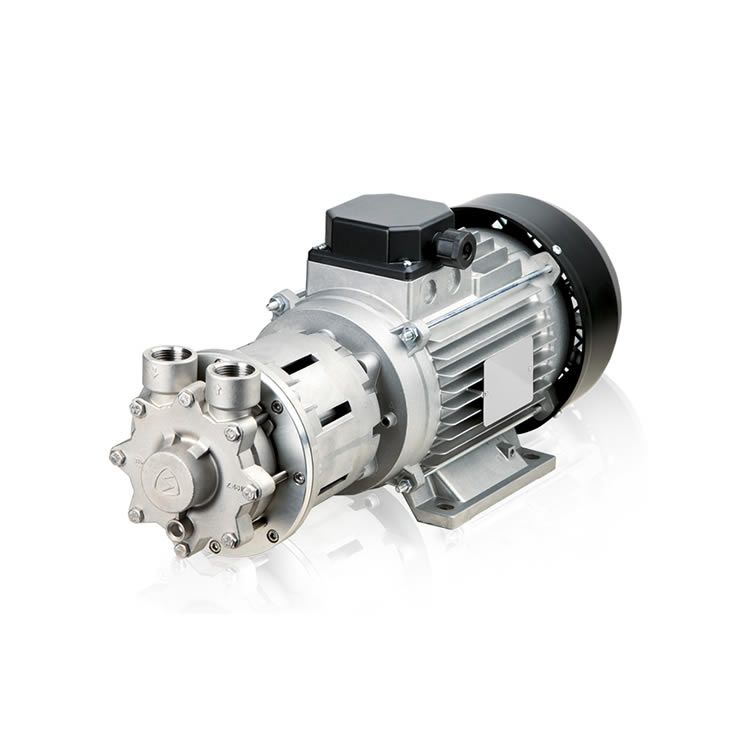

MD-CX206 | 3 ph | 2,75 / 2,95 | R.F.T. | 3/4 - 3/4 | 103 | 79 |
3ph 230/400V-50Hz; 265/460V-60Hz
P2 = Pump absorbed power - R.F.T. = Technical Feasibility Request
Characteristics
For clear waters/oils and moderately aggressive dilutions, without abrasive substances
Continuous duty S1
2 pole motor
Insulation class F
Protection IP42
IE3 efficiency class for 3-phase motors >0,75 kW
Working tolerance: +/-10%
Limit ambient temperature: +40°C
Not self-priming
On request
Special voltages
Dual-frequency
Other IP degrees
cRUus certified motors for selected tensions
Permanent Magnet Sensorless Motor
