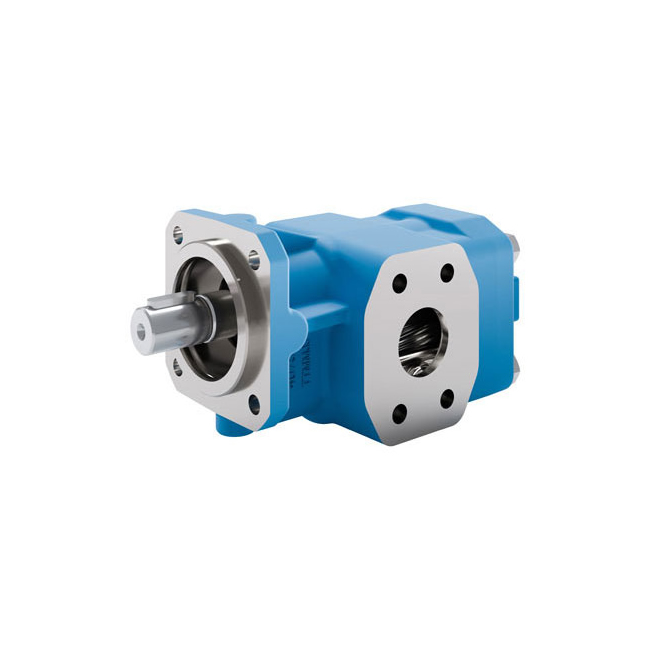

kracht KF 5/315 H10B POA 0DP1/197 Transfer gear PUMP
In the standard version, the housing parts are made of cast iron. The gears are made of high-strength case-hardened steel, hardened and mounted in special multi-material plain bearing bushes. In the standard version, the drive shaft end is sealed by a rotary shaft seal. All sizes are made with helical gearing. This, in combination with a special gearing geometry, results in extremely low noise levels and low-pressure pulsation.
Displacement: 2.5 … 3 150 cm³/rev
Media temperature: -40 … 200 °C
Maximum pressure: … 25 bar
APPLICATIONS
> Lubricating oil supply for marine gearboxes, wind turbines and compressors
> Pre- and main lubrication of diesel engines
> Oil delivery in filter systems
> Fuel delivery
