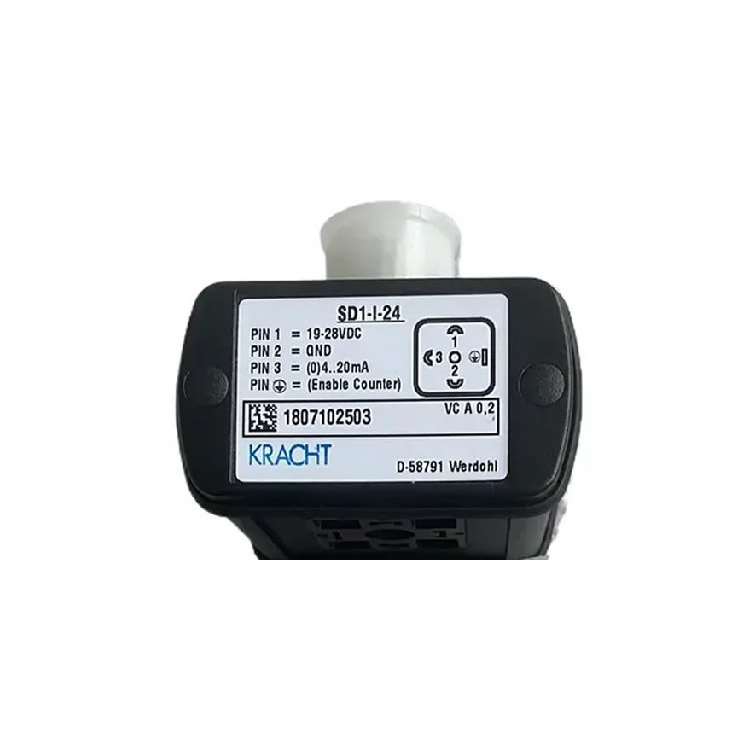

The KRACHT SD1-I-24 is a high-precision gear-type volumetric counter designed for accurately measuring the flow rates of various liquids, including oils and lubricants. It is specifically engineered to provide reliability in demanding industrial environments, operating on the positive displacement principle to ensure accurate measurements across a wide range of viscosities and flow rates. This particular model features an inductive sensor (NAMUR) for generating a frequency output signal proportional to the flow rate, suitable for connection to PLCs or other monitoring systems.
Technical Specifications:
Measurement Principle: Positive displacement gear meter
Housing Material: Aluminum (standard)
Sensor Type: Inductive sensor (compliant with NAMUR EN 60947-5-6)
Measurement Range: Depends on the specific size within the SD1 series (the series typically covers 0.005 – 70 liters per minute)
Maximum Operating Pressure: Up to 400 bar
Viscosity Range: 1 – 10,000 mm²/s (cSt)
Fluid Temperature Range: -20 °C to +120 °C (using standard FKM seals)
Output Signal: Frequency pulse signal via inductive sensor
Process Connection: Typically G 1/4 (ISO 228/1)
