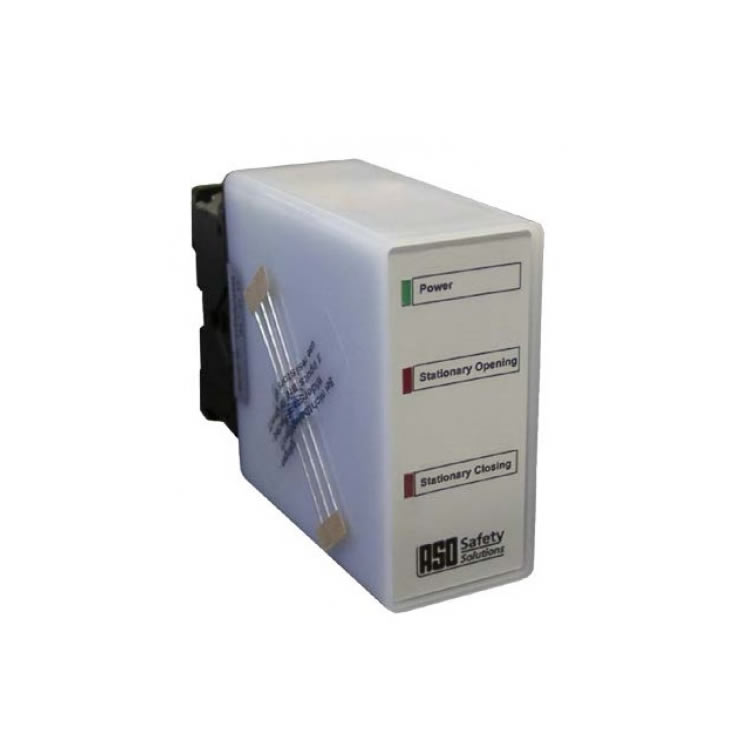

The ELMON relay is designed for use on hinged gates, barriers, shutters and machine solutions. The relay evaluates pressure sensors fitted to the systems, including safety contact mats, safety contact edges and safety bumpers, reducing the risk of crush and shearing points.
Two separate sensor circuits can be connected to the SK 32 switching unit, whereby both act on one switching output.
Monitoring of the standby current is made possible by an integrated terminating resistor in the sensor circuit. If the specified standby current is flowing, the output relay is activated and the switching contact is closed. If a sensor is actuated or a sensor circuit is interrupted, the relay switching contact opens.
The relay is designed in accordance with EN ISO 13849-1:2008 for Category 3. To comply with Category 3 for compliance with category 3, the safety output is set up redundantly with two independent switching elements.
The monitoring state of the sensors and the applied operating voltage are indicated by LEDs.
In the event of a fault alarm, all safety outputs are inactive.
Type

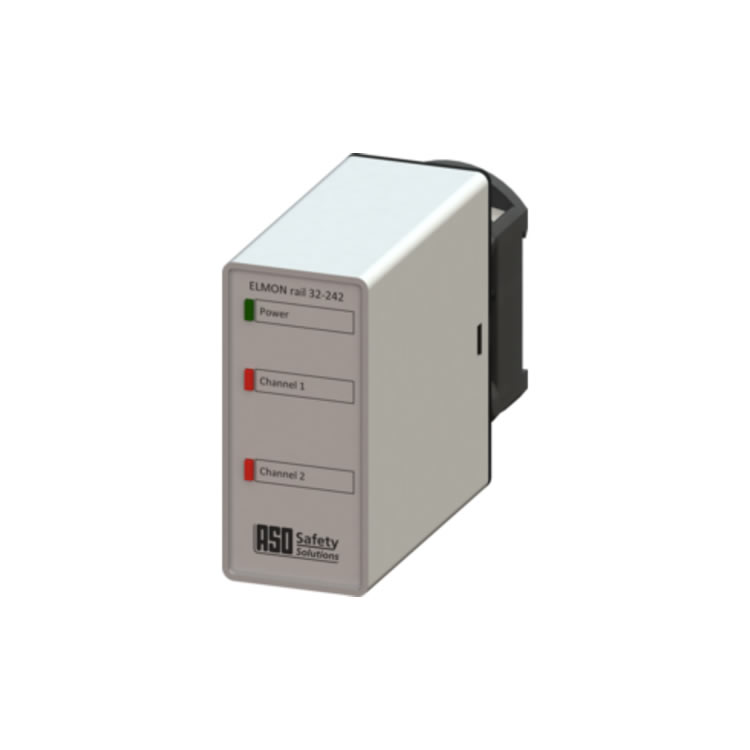

ELMON relay 32-242
Article number
1109-0080
Dimensions
W 38 mm x H 82 mm x D 100 mm
Safety Category and Performance Level
*Cat. 3 / PL e
Voltage supply
24 V AC/DC
Response time
<12 ms
Input
2 x sensor 8,2 kOhm
Output
2 x forcibly actuated relay contact
Protection class
IP 20
Mechanical service life
>105 actuations
Approval
2006/42/EG
