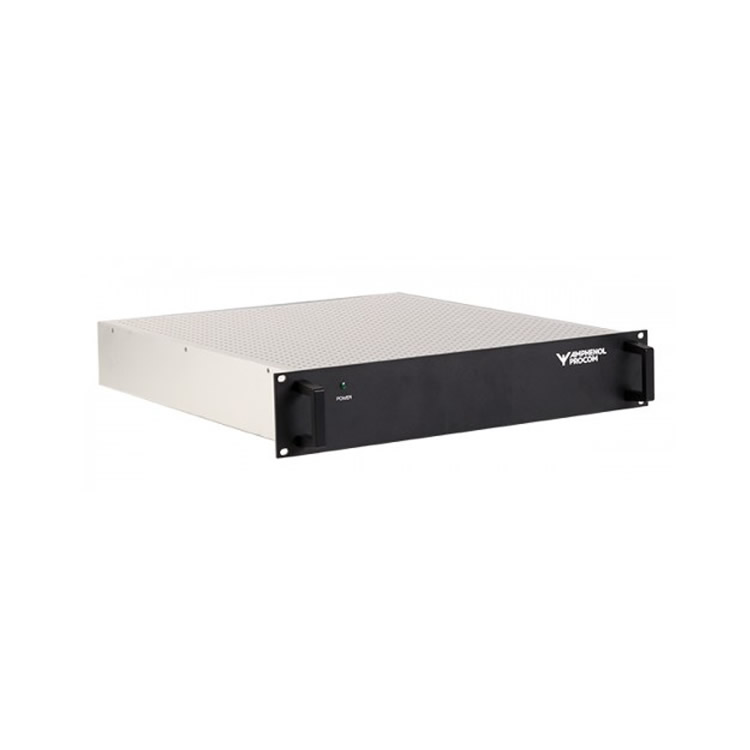

Model: PRO-HDAR150-4
Frequency:
l: 136 - 156 MHz
h: 152 - 175 MHz
Max. Input Power: 50 W (per channel)
Max. Tx-Tx Spacing, Δ Tx: 1.5 MHz
Min. Tx-Rx Spacing: 4 MHz
Isolation (Rx on Frequency Tx):
Tx - Tx spacing < 0.5 MHz: > 80 dB
Tx - Tx spacing > 0.5 MHz: > 60 dB
Insertion Loss (Tx Path): < 8.0 dB
Impedance: 50 Ω
Ant-Tx Isolation: > 40 dB @ 25 °C
Gain:
Rx PATH: 1 dB ±1 dB (factory-set)
Isolation (Rx-Rx): > 20 dB
Isolation (Tx-Tx): > 70 dB
VSWR: ≤ 1.5:1
Isolation (Tx on Frequency Rx):
Rx - Rx spacing < 0.5 MHz: > 80 dB
Rx - Rx spacing > 0.5 MHz: > 60 dB
LNA Noise Figure: < 3.5 dB
Number of Channels: 4
